Bend Insensitive Multimode Fibres OM3/OM4

Very low   macro-bending sensitivity

Low   micro-bending sensitivity

The fibre is easier to handle and install without excessive   care when storing the fibre, for example, in splicing cassettes

Supports   installation with small cable bend radii and compact organizers

Facilitates jumper moves,adds and changes

Maintaining compatibility with current

OM2+/OM3/OM4 multimode optical fibre

Low differential   mode delay (DMD)

Low attenuation

Central offices

Data centers

High performance computing   centers

Local Area   Networks

Storage Area   Networks

Supporting 1& 10&40& 100&   400 Gb/s applications

Coated with FCJ's proprietary dual layer UV curable   acrylate

Optimized   performance in tight-buffer cable applications

High resistance to   micro-bending

Stable performance over a wide range of   environmental conditions

Geometry Characteristics

Core Diameter

-

50±2.5

[㎛]

CoreNon-Circularity

-

≤5.0

[%]

Cladding Diameter

-

125.0±1.0

[㎛]

Cladding Non-Circularity

-

≤0.6

[%]

Coating Diameter

-

245 ±7

[㎛]

Coating/Cladding Concentricity Error

-

≤10.0

[㎛]

Coating Non-Circularity

-

≤6.0

[%]

Core/Cladding Concentricity Error

-

≤1.0

[㎛]

Delivery Length

-

up to 8.8

[km/reel]

Optical Characteristics

Attenuation

850nm

≤2.4

[dB/km]

1300nm

≤0.6

[dB/km]

-

-

OM2+/OM3/OM4 Bend Insensitive

Overfilled Modal Bandwidth

850nm

≥700/≥1500/≥3500

[MHz•km]

1300nm

≥500/≥500/≥500

[MHz•km]

Effective Modal Bandwidth

850nm

≥950/≥2000/≥4700

[MHz•km]

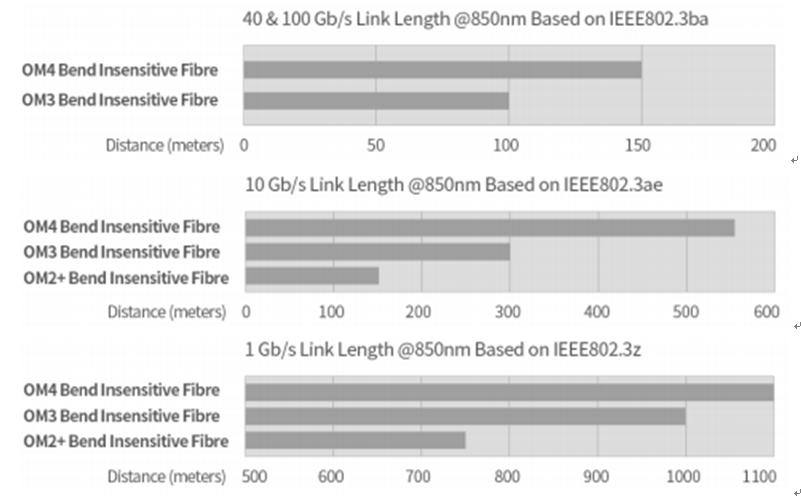

Application support distance on

-

-

-

40GBASE-SR4 / 100GBASE-SR10

850nm

-/100/150

[m]

10GBASE-SR

850nm

150/300/500

[m]

1000BASE-SR

850nm

750/1000/1100

[m]

DMD Specification

Compliant with and more stringent than the   requirements of IEC60793-2-10

-

Numerical Aperture

-

0.200±0.015

-

Group Refractive Index

850nm

1.482

-

1300nm

1.477

-

Zero Dispersion Wavelength,λ₀

-

1295~1340

[nm]

Zero Dispersion Slope, S₀

1295nm≤λ₀≤131Onm

≤0.105

[ps/(nm² • km)]

131Onm≤λ₀≤134Onm

≤0.000375(1590-λ₀)

[ps/(nm² • km)]

Macrobending Loss¹

-

-

-

2Turns@15mm Radius

850nm

≤0.1

[dB]

1300nm

≤0.3

[dB]

2Tums@7.5 mm Radius

850nm

≤0.2

[dB]

1300nm

≤0.5

[dB]

Backscatter   Characteristics                                      1300nm

Step (Mean of Bidirectional Measurement)

-

≤0.10

[dB]

Irregularities Over Fibre Length and Point   Discontinuity

-

≤0.10

[dB]

Attenuation Uniformity

-

≤0.08

[dB/km]

Environmental Characteristics                           850nm   & 1300nm

Temperature Cycling

-60°C to 85°C

≤0.10

[dB/km]

Temperature-Humidity Cycling

-10°C to 85°C,4% to 98% RH

≤0.10

[dB/km]

Water Immersion

23°C,30days

≤0.10

[dB/km]

Dry Heat

85°C,30days

≤0.10

[dB/km]

Damp Heat

85°C,85%RH,30days

≤0.10

[dB/km]

Mechanical Specification

Proof Test

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[kpsi]

Coating Strip Force

typical average force

1.5

[N]

peak force

≥1.3, ≤8.9

[N]

Dynamic Stress Corrosion Susceptibility   Parameter (n_d, typical)

-

20

-
