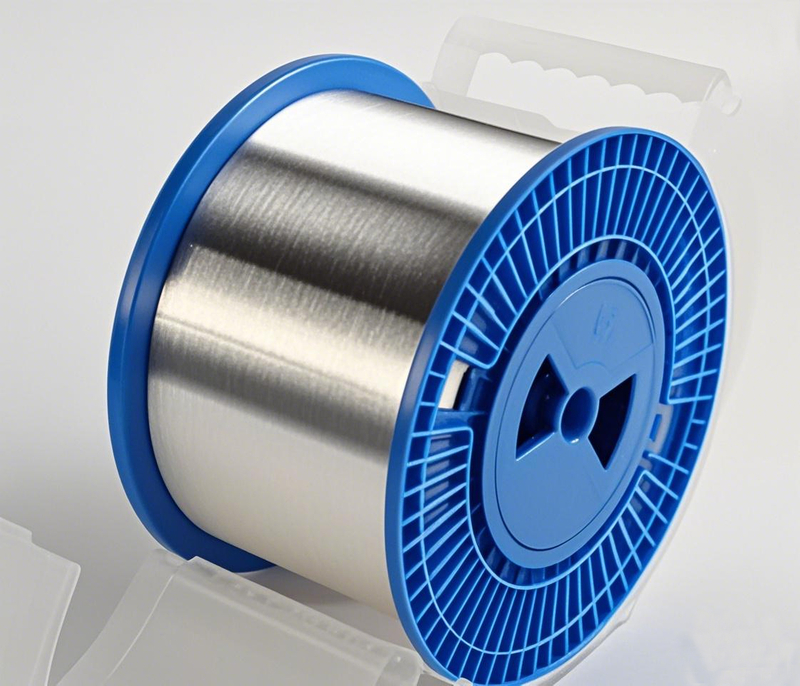

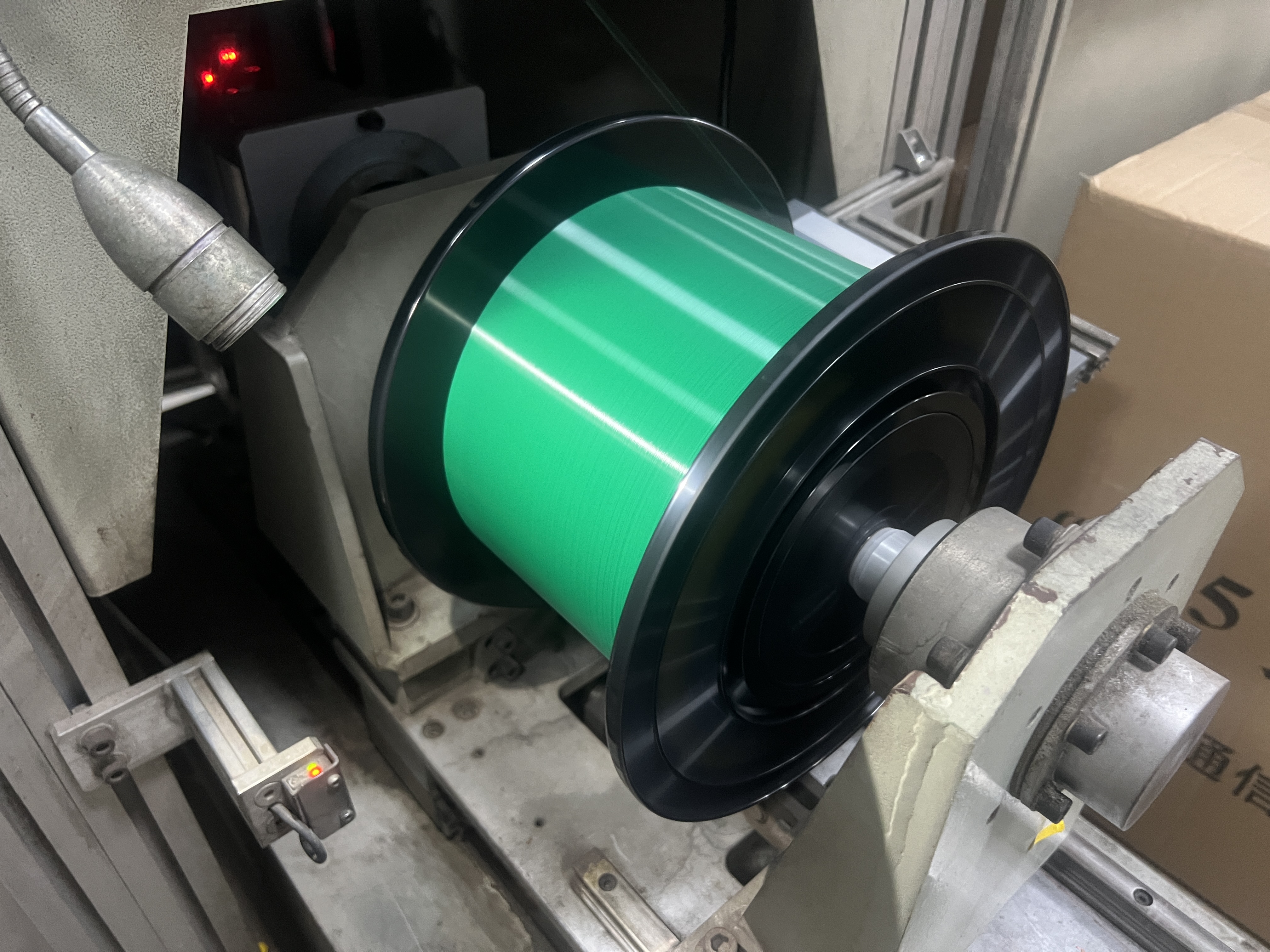

FPV drone fiber Bend Insensitive Single-Mode Optical Fiber G.657.A2
Standard
The fiber complie with or exceed the technical specifications in ITU-T G.657.A1/A2/B2.
Features
Minimum bend radius 7.5mm, superior anti-bending property;
Fully compatible with G.652 single-mode fiber. Full band (1260~1626nm) transmission;
Low PMD for high bit-rate and long distance transmission. Extremely low micro-bending attenuation, applicable for all optical cable types including ribbons;
High anti-fatigue parameter ensures service life under small bending radius.
ApplicationsAll cable constructions, 1260~1626nm full band transmission, FTTH high speed optical routing, optical cable in small bend radius, small-size optical fiber cable and device, L-band.
Technical Specifications：
| Attributes | specification | |||
| Dimensional Specifications | Cladding Diameter | 125.0±0.7 um | ||
| Cladding Non-Circularity | ≤0.7% | |||
| Coating Diameter | 243±7 um | |||
| Coating-Cladding Concentricity | ≤10 um | |||
| Coating Non-Circularity | ≤6 % | |||
| Core-Clad Concentricity | ≤0.5 um | |||
| Fiber curl (radius) | ≥4 m | |||
| Delivery length | 2.1-50.4( km/reel) | |||
Optical Specifications Optical Specifications | Mode-Field Diameter (MFD) | @1310nm | 8.6±0.4 um | |
| @1550nm | 9.8±0.6 um | |||
| Attenuation | @1310nm | ≤0.35 dB / km | ||
| @1383nm | ≤0.35 dB / km | |||
| @1550nm | ≤0.21 dB / km | |||
| @1625nm | ≤0.23dB / km | |||
| Attenuation VS. Wavelength | @1285-1330nm, Ref. λ@1310nm | ≤0.03 dB / km | ||
| @1525-1575nm, Ref. λ@1550nm | ≤0.02 dB / km | |||
| Point Discontinuity | @1310nm | ≤0.04 dB | ||
| @1550nm | ≤0.04 dB | |||
| Polarization Mode Dispersion(PMD) | Maximum Individual Fiber PMD | ≤0.1 ps/(km1/2) | ||
| PMD Link Design Value (M=20, Q=0.01%) | ≤0.06 ps/(km1/2) | |||
| Typical Value | 0.04 ps/(km1/2) | |||
| Zero Dispersion Wavelength(λ0) | 1312±12 nm | |||
| Zero Dispersion slope(S0) | ≤0.092 ps/(nm2.km) | |||
| Dispersion | 1550nm | ≤18 ps/(nm.km) | ||
| 1625nm | ≤22 ps/(nm.km) | |||
| Cable cutoff wavelength λcc | ≤1260 nm | |||
| Mechanical Specifications | Proof test | ≥9.0N, ≥1.0%, ≥100Kpsi | ||
| Dynamic stress corrosion susceptibility parameters Nd | ≥20 | |||
| Coating strip force | Average | 1.7 N | ||
| Peak | 1.3-8.9 N | |||
| Macrobending loss (dB) | 1 turn, Φ15mm@1550nm&1625nm | ≤0.5 dB, ≤1 dB | ||
| 1 turn, Φ20mm@1550nm&1625nm | ≤0.1 dB, ≤0.2 dB | |||
| 10turns, Φ30mm@1550nm&1625nm | ≤0.03 dB, ≤0.1 dB | |||
| Environmental Specifications | Temperature Dependence (-60ºC to +85ºC@1310nm&1550nm&1625nm) | ≤0.05 dB / km | ||
| Temperature Humidity Cycling(-10ºC to +85ºC, at 85%RH@1550nm&1625nm) | ≤0.05 dB / km | |||
| Water Immersion(23±2ºC, 30 days@1550nm&1625nm) | ≤0.05 dB / km | |||
| Dry Heat Soak(85±2ºC, 30 days@1550nm&1625nm) | ≤0.05 dB / km | |||
| Damp Heat(85±2ºC, at 85%RH, 30 days@1550nm&1625nm) | ≤0.05 dB / km | |||
The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.
The packaged optical fiber is stored at a constant temperature of 25℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
FPV drone fiber Bend Insensitive Single-Mode Optical Fiber G.657.A2
Standard
The fiber complie with or exceed the technical specifications in ITU-T G.657.A1/A2/B2.
Features
Minimum bend radius 7.5mm, superior anti-bending property;
Fully compatible with G.652 single-mode fiber. Full band (1260~1626nm) transmission;
Low PMD for high bit-rate and long distance transmission. Extremely low micro-bending attenuation, applicable for all optical cable types including ribbons;
High anti-fatigue parameter ensures service life under small bending radius.
ApplicationsAll cable constructions, 1260~1626nm full band transmission, FTTH high speed optical routing, optical cable in small bend radius, small-size optical fiber cable and device, L-band.
Technical Specifications：
| Attributes | specification | |||
| Dimensional Specifications | Cladding Diameter | 125.0±0.7 um | ||
| Cladding Non-Circularity | ≤0.7% | |||
| Coating Diameter | 243±7 um | |||
| Coating-Cladding Concentricity | ≤10 um | |||
| Coating Non-Circularity | ≤6 % | |||
| Core-Clad Concentricity | ≤0.5 um | |||
| Fiber curl (radius) | ≥4 m | |||
| Delivery length | 2.1-50.4( km/reel) | |||
Optical Specifications Optical Specifications | Mode-Field Diameter (MFD) | @1310nm | 8.6±0.4 um | |
| @1550nm | 9.8±0.6 um | |||
| Attenuation | @1310nm | ≤0.35 dB / km | ||
| @1383nm | ≤0.35 dB / km | |||
| @1550nm | ≤0.21 dB / km | |||
| @1625nm | ≤0.23dB / km | |||
| Attenuation VS. Wavelength | @1285-1330nm, Ref. λ@1310nm | ≤0.03 dB / km | ||
| @1525-1575nm, Ref. λ@1550nm | ≤0.02 dB / km | |||
| Point Discontinuity | @1310nm | ≤0.04 dB | ||
| @1550nm | ≤0.04 dB | |||
| Polarization Mode Dispersion(PMD) | Maximum Individual Fiber PMD | ≤0.1 ps/(km1/2) | ||
| PMD Link Design Value (M=20, Q=0.01%) | ≤0.06 ps/(km1/2) | |||
| Typical Value | 0.04 ps/(km1/2) | |||
| Zero Dispersion Wavelength(λ0) | 1312±12 nm | |||
| Zero Dispersion slope(S0) | ≤0.092 ps/(nm2.km) | |||
| Dispersion | 1550nm | ≤18 ps/(nm.km) | ||
| 1625nm | ≤22 ps/(nm.km) | |||
| Cable cutoff wavelength λcc | ≤1260 nm | |||
| Mechanical Specifications | Proof test | ≥9.0N, ≥1.0%, ≥100Kpsi | ||
| Dynamic stress corrosion susceptibility parameters Nd | ≥20 | |||
| Coating strip force | Average | 1.7 N | ||
| Peak | 1.3-8.9 N | |||
| Macrobending loss (dB) | 1 turn, Φ15mm@1550nm&1625nm | ≤0.5 dB, ≤1 dB | ||
| 1 turn, Φ20mm@1550nm&1625nm | ≤0.1 dB, ≤0.2 dB | |||
| 10turns, Φ30mm@1550nm&1625nm | ≤0.03 dB, ≤0.1 dB | |||
| Environmental Specifications | Temperature Dependence (-60ºC to +85ºC@1310nm&1550nm&1625nm) | ≤0.05 dB / km | ||
| Temperature Humidity Cycling(-10ºC to +85ºC, at 85%RH@1550nm&1625nm) | ≤0.05 dB / km | |||
| Water Immersion(23±2ºC, 30 days@1550nm&1625nm) | ≤0.05 dB / km | |||
| Dry Heat Soak(85±2ºC, 30 days@1550nm&1625nm) | ≤0.05 dB / km | |||
| Damp Heat(85±2ºC, at 85%RH, 30 days@1550nm&1625nm) | ≤0.05 dB / km | |||
The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.
The packaged optical fiber is stored at a constant temperature of 25℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
