G655
KEEPTOP
| Quantity: | |
|---|---|
Description:
G655 single mode optic fiber is a non-zero dispersion shifted fiber (NZ-DSF) with large effective area.
Application:
G655 is ideal for high data-rate, multi-wavelength long haul transmission. It has a large effective area for improved power handling plus dispersion optimized for dense wavelength division multiplexing( DWDM). It is suitable for transmission in the conventional C-band(1530-1556nm) and L-band(1565-1625nm), it exceeds the requirements of today‘s high-channel-count 2.5Gb/s AND 10Gb/s systems, and supports migration to next generation 40Gb/s data rates.
Benefits:
G655 has large effective area for improved power handling plus dispersion optimized for dense wavelength division multiplexing (DWDM).This combination reduces the onset of non-linear transmission effects such as four-wave mixing and self-phase modulation, whilst also reducing the cost and complexity of dispersion compensation.

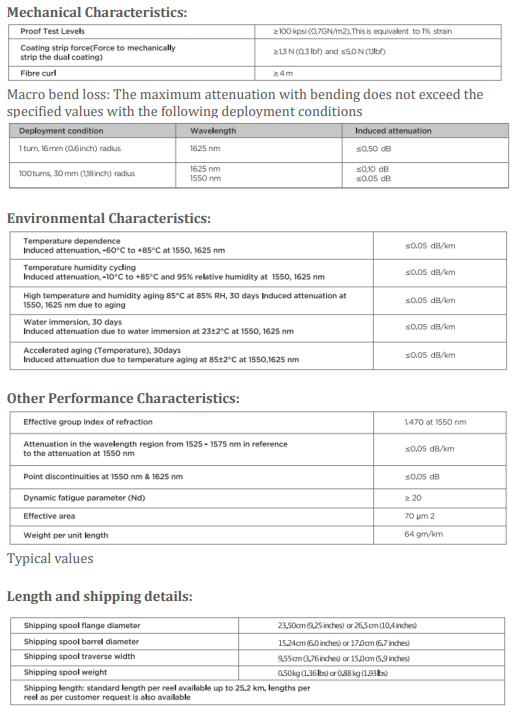

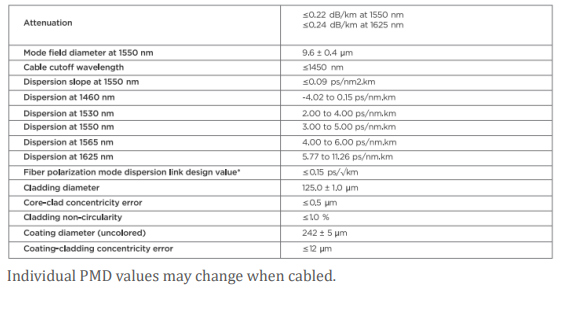

Specifications:
The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.
The packaged optical fiber is stored at a constant temperature of 25℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
Description:
G655 single mode optic fiber is a non-zero dispersion shifted fiber (NZ-DSF) with large effective area.
Application:
G655 is ideal for high data-rate, multi-wavelength long haul transmission. It has a large effective area for improved power handling plus dispersion optimized for dense wavelength division multiplexing( DWDM). It is suitable for transmission in the conventional C-band(1530-1556nm) and L-band(1565-1625nm), it exceeds the requirements of today‘s high-channel-count 2.5Gb/s AND 10Gb/s systems, and supports migration to next generation 40Gb/s data rates.
Benefits:
G655 has large effective area for improved power handling plus dispersion optimized for dense wavelength division multiplexing (DWDM).This combination reduces the onset of non-linear transmission effects such as four-wave mixing and self-phase modulation, whilst also reducing the cost and complexity of dispersion compensation.
Specifications:
The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.
The packaged optical fiber is stored at a constant temperature of 25℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
