Low Loss Bend Insensitive Single-mode Optical Fiber G652D+G.657A1

Low Loss Bend Insensitive Single-mode Optical Fiber (G652D+G.657A1)

Model:
G652D+G657A1
Brand:
KEEPTOP

Availability:

Quantity:



Inquire Add to Basket

Product Description

Type

Low Loss Bend Insensitive Single-mode Optical Fiber （G652D+G.657A1）

Standard

The fiber comply with or exceed the technical specifications in ITU-T G.652.D /G657.A1.

Feature

Ø Superior anti-bending property;

Ø Fully compatible with G.652 single-mode fiber. Full band (1260～1626 nm) transmission;

Ø Low PMD for high bit-rate and long distance transmission. Extremely low micro-bending attenuation, applicable for all optical cable types including ribbons;

Ø High anti-fatigue parameter ensures service life under small bending radius.

Application

All cable constructions, 1260～1626nm full band transmission, FTTH high speed optical routing, optical cable in small bend radius, small-size optical fiber cable and device, L-band.

Technical Specifications：

Attributes			specification
Dimensional Specifications	Cladding Diameter		125.0±0.7 um
	Cladding Non-Circularity		≤0.7%
	Coating Diameter		245±10 um
	Coating-Cladding Concentricity		≤12 um
	Coating Non-Circularity		≤6 %
	Core-Clad Concentricity		≤0.5 um
	Fiber Curl (radius)		≥4 m
	Delivery Length		2.05-50.4( km/reel)
Optical Specifications Optical Specifications	Mode-Field Diameter (MFD)	@1310nm	9.2±0.4 um
		@1550nm	10.4±0.8 um
	Attenuation	@1310nm	≤0.34 dB / km
		@1383nm	≤0.34 dB / km
		@1550nm	≤0.19 dB / km
		@1625nm	≤0.24 dB / km
	Attenuation VS. Wavelength	@1285-1330nm, Ref. λ@1310nm	≤0.04dB / km
		@1525-1575nm, Ref. λ@1550nm	≤0.03dB / km
	Point Discontinuity	@1310nm	≤0.05 dB
		@1550nm	≤0.05 dB
	Polarization Mode Dispersion（PMD）	Maximum Individual Fiber PMD	≤0.2 ps/(km^1/2)
		PMD Link Design Value （M=20, Q=0.01%）	≤0.1 ps/(km^1/2)
		Typical Value	0.04 ps/(km^1/2)
	Zero Dispersion Wavelength(λ₀)		1312±12 nm
	Zero Dispersion Slope(S₀)		≤0.092 ps/(nm².km)
	Dispersion	1550nm	≤18 ps/(nm.km)
		1625nm	≤22 ps/(nm.km)
	Cable Cutoff Wavelength λcc		≤1260 nm
	Effective group index（Neff） @1310nm		1.4673
	Effective group index（Neff） @1550nm		1.4678
Mechanical Specifications	Proof Test		≥9.0N, ≥1.0%, ≥100Kpsi
	Dynamic stress corrosion susceptibility parameters Nd		≥20
	Coating Strip Force	Average	1.5 N
		Peak	1.3-8.9 N
	Macrobend Loss	10 turn, Φ30mm@1550nm	≤0.25dB
		10turn, Φ30mm@1625nm	≤1dB
		1turn Φ20mm@1550nm	≤0.75dB
		1turn Φ20mm@1550nm	≤1.5dB
Environmental Specifications	Temperature Dependence（-60℃ to 85℃ ,@1310nm&1550nm&1625nm）		≤0.05 dB / km
	Water Immersion（23±2℃, 30 days@1310nm&1550nm&1625nm）		≤0.05 dB / km
	Dry Heat Soak（85±2℃, 30 days@1310nm&1550nm&1625nm）		≤0.05 dB / km
	Damp Heat（85±2℃, at 85%RH, 30 days @1310nm&1550nm&1625nm）		≤0.05 dB / km

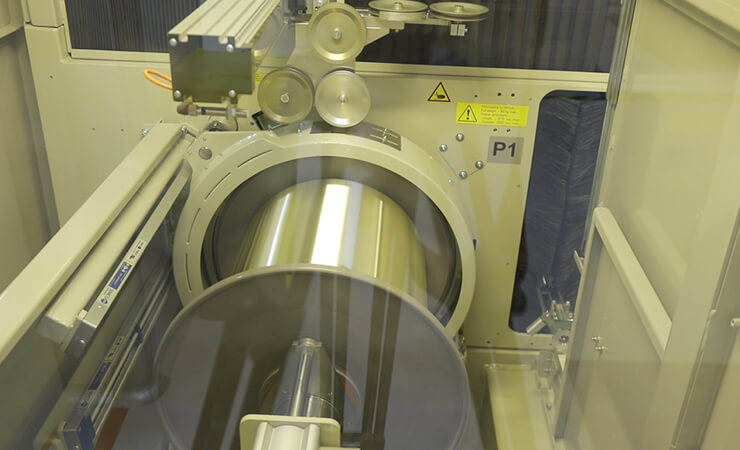

The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.

Warranty

The company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.

Packaging and storage

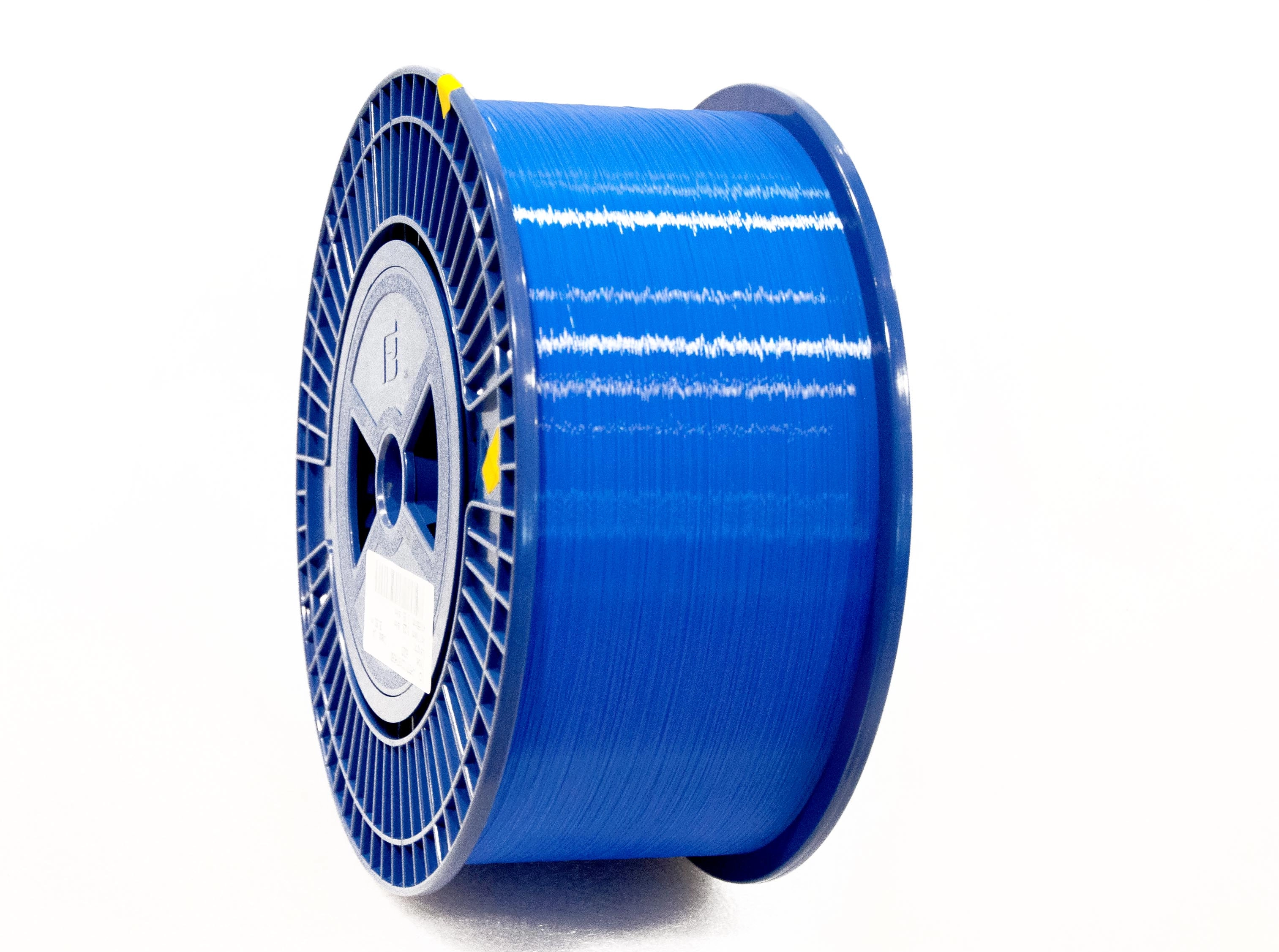

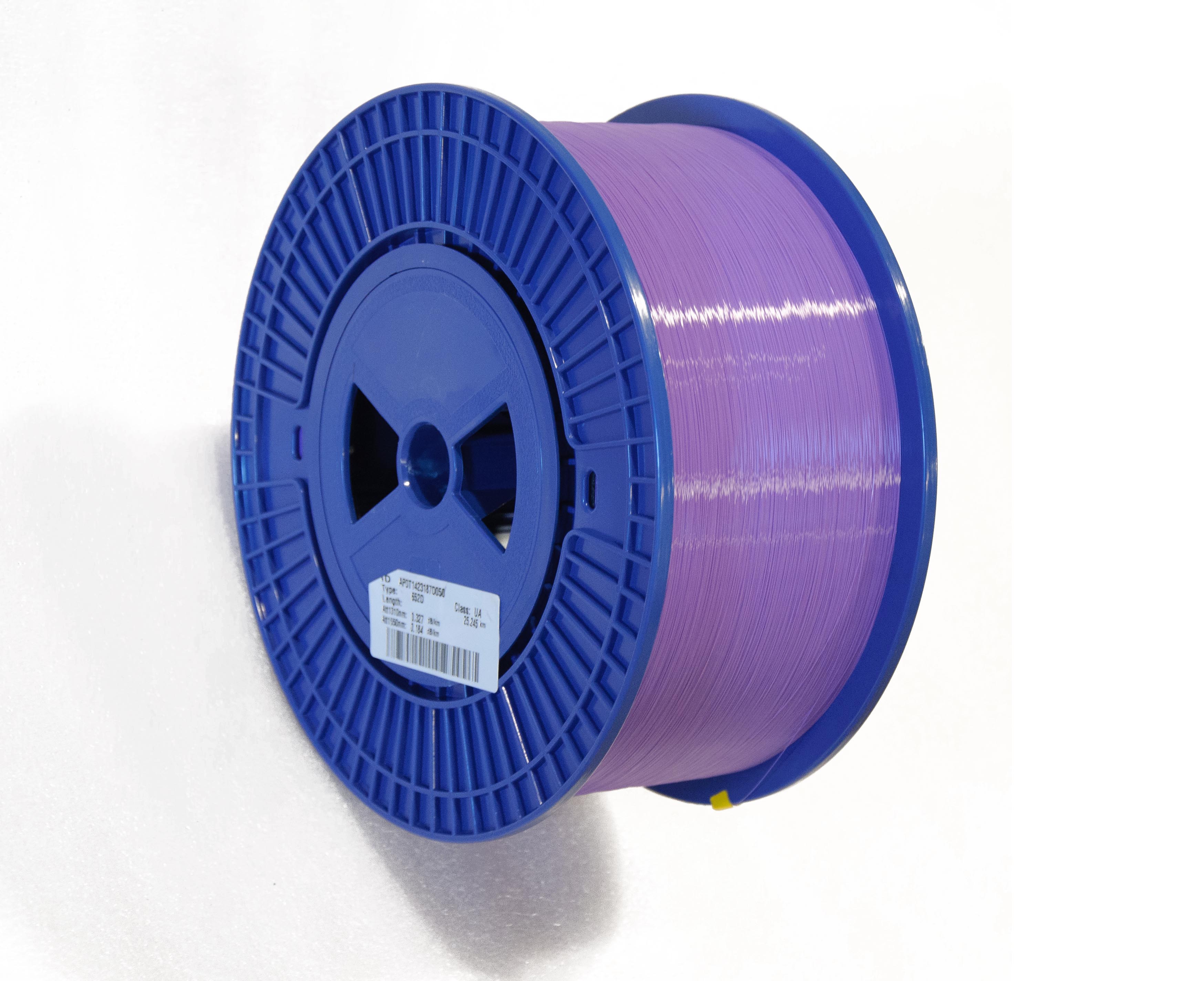

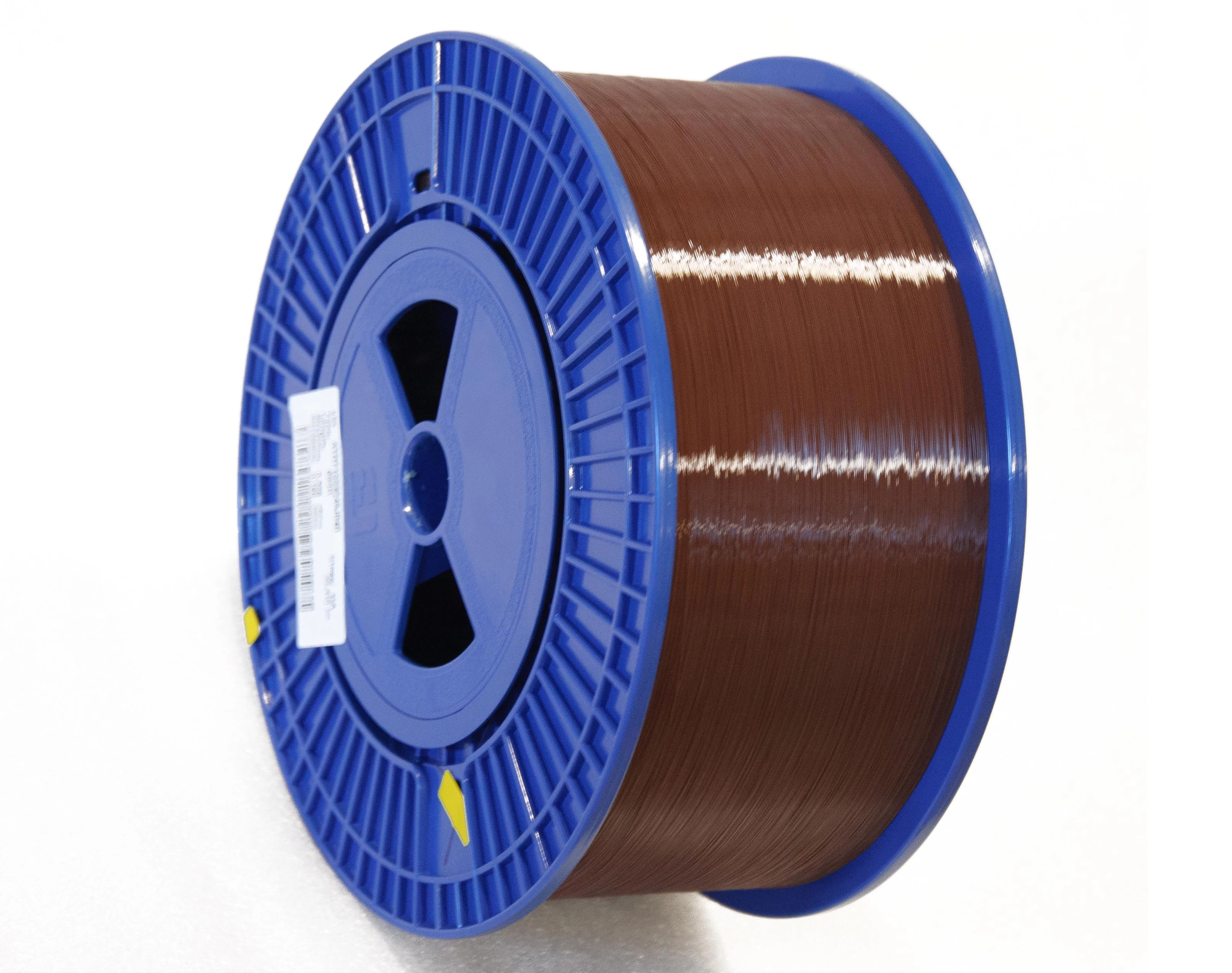

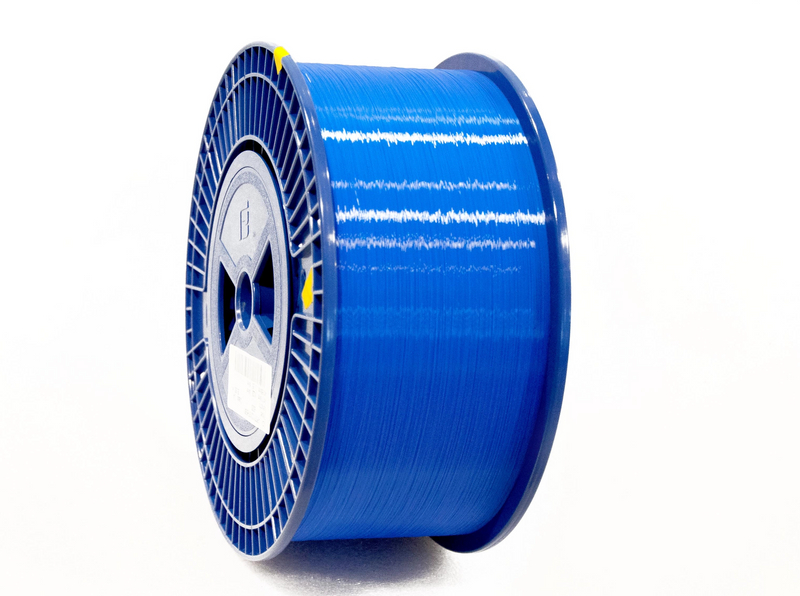

Ensure no foreign matter on the reel and fiber surface, wrap it with film and cover, and label fiber coding on the reel and cover respectively.

The packaged optical fiber is stored at a constant temperature of 25℃ in a light-proof warehouse. The products are fixed in the carton when they are shipped out of the warehouse. The carton number and fiber coding information are attached to the carton, and the electronic test report is attached to each shipment.
