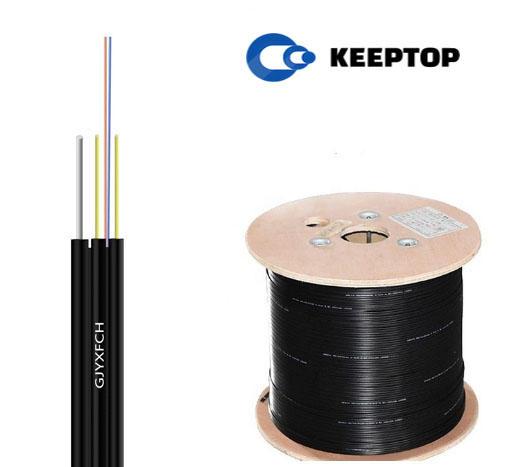

GJYXCH 1~8cores FTTH Fiber Optic Drop Cable with Phosphating steel wire messenger ,G652D/G657A1/G657A2 fiber LSZH outer sheath

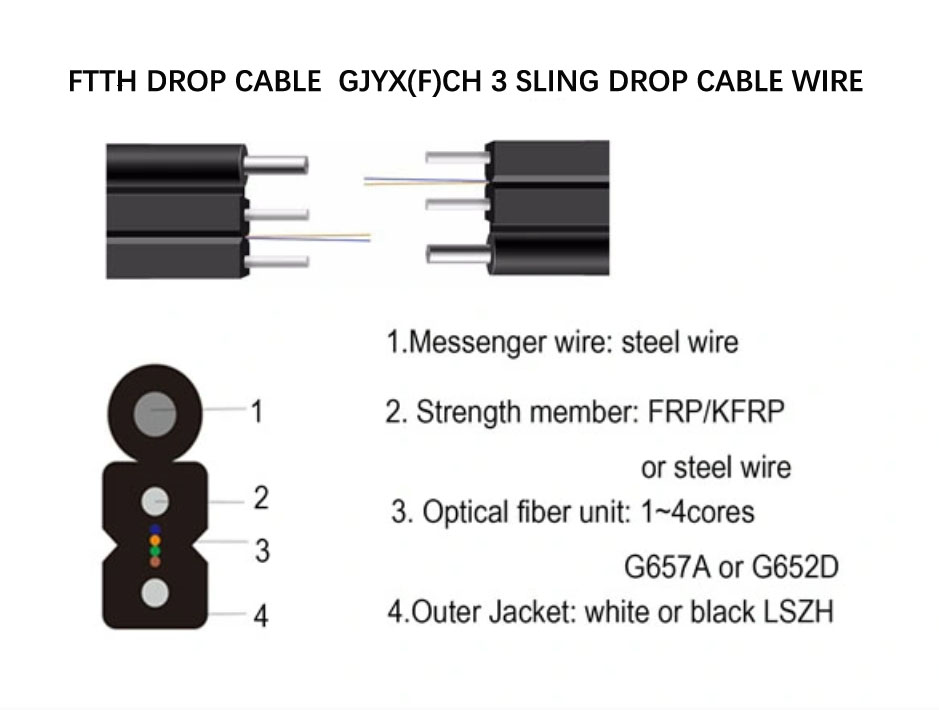

GJYX(F)CH is the FTTH drop cable with self-supporting. The optical fiber unit is positioned in the centre. Two steel wires (or FRP, KFRP ) are placed at the two sides ,then
an additional steel wire is attached to the outside. Finally the cable is completed with a black or white color PVC or LSZH (low smoke, no halogen, flame retardant) sheath.
Features and application:
* Simple structure, light weight and strong practicability.
* Unique groove design, easy to peel off and connect, simplify installation and maintenance;
* A single steel wire with additional reinforcement elements makes the cable have good tensile properties.
*Outdoor aerial
Fiber parameters
Technical parameters
Main mechanical and environmental properties
Standard wood drum (Pallets) or carton box;
Standard Length :1000m/2000m or customized
Fiber parameters
G.652.D | G.657A2 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | - | - | ≤3.0dB/km | ≤3.0dB/km |
@1300nm | - | - | ≤1.0dB/km | ≤1.0dB/km | |
@1310nm | ≤0.36dB/km | ≤0.36dB/km | - | - | |
@1550nm | ≤0.22dB/km | ≤0.23dB/km | - | - | |
Bandwidth | @850nm | - | - | ≥500MHz·km | ≥200MHz·km |
@1300nm | - | - | ≥1000MHz·km | ≥600MHz·km | |
Wavelength | ≤1260nm | ≤1260nm | - | - | |
Polarization mode dispersion | Single fiber | ≤0.20ps/√km | ≤0.20ps/√km | - | - |
Link value (M=20,Q=0.01%) | ≤0.10ps/√km | ≤0.10ps/√km | - | - | |
Technical parameters
Fiber cores | 1 | 2 | 4 | 8 | |
Strength member | Material | KFRP/Steel wire | |||
Self-supporting | Material | Steel wire | |||
Outer jacket | Thickness mm | ≥0.3 | |||
Outer dia. | mm | (2.0*5.0)±0.1 | (2.0*5.0)±0.1 | (2.0*6.0)±0.1 | |
Temperature | ºC | -40~+60 | |||
Tensile | Short/Long N | 600/300 | |||
Flatten | Short/Long N | 2200/1000 | |||
* Note: Or customized according to the customer's requirements | |||||
Main mechanical and environmental properties
Test items | Test standard | Specified value | Requirement |
Tensile | IEC 60794-1-2-E1 | According to the technical Parameter | Residual additional attenuation≤0.03dB |
Flatten | IEC 60794-1-2-E3 | According to the technical Parameter | Additional attenuation under short-term flat force≤0.4dB |
Crush | IEC 60794-1-2-E4 | Impact 1N,Height 1m,at least 3 locations | Residual additional attenuation≤0.4dB |
Repeated Bending | IEC 60794-1-2-E6 | 20N 300 times | Residual additional attenuation≤0.4dB |
Temperature | IEC 60794-1-2-F1 | -40ºC ~+60ºC | Additional attenuation≤0.02dB |
Combustion | IEC 60332-1-2 | Flammability | Should be able to pass through a single vertical combustion |
Smoke density | No less than 50% | ||
Corrosive | The gas PH ≤ 4.3 during burning, the conductivity should ≤ 10 μs / mm | ||
* All optical fiber attenuation changes are monitored at a wavelength of 1550 nm. | |||
Packing Info:
Standard wood drum (Pallets) or carton box;
Standard Length :1000m/2000m or customized
Ordering Info:
Fiber Unit: | No-fiber / J-compact fibre/ D-Band fiber |
Fiber cores: | 1~8 |
Type of the fiber: | A1a(50/125) / A1b(62.5/125)/B6a2(G657A2)/B1.3(G652D) |
