AX5425Y-3
KEEPTOP
| Quantity: | |
|---|---|
◼ Product Features
The AX5425Y-3 adopts the new six-generation wireless standard 802.11ax protocol, which can reach a maximum connection rate of 5.378Gbps and a wired network port supporting 2.5Gpbs, which is tailored for high-density wireless access scenarios.
The AX5425Y-3 adopts 2.4G and 5G-1, 5G-2 independent tri-band design, effectively improving the concurrency capability and terminal average rate in high-density scenarios.
The AX5425Y-3 supports spatial multiplexing technology (SR), which can realize channel multiplexing in a high-density scenario environment, more alleviate the impact of co-channel interference in actual network deployment, and improve access capacity and stability.
Power saving management technology TWT (Target Wake Time) is adopted to reduce battery consumption of terminals, so as to improve battery life of terminals.
AX5425Y-3 supports 802.11 k/v/r fast roaming protocol, so that the terminal equipment can achieve seamless roaming, greatly improving user experience.
Suitable for industrial robots, hospital rounds and other seamless roaming scenarios.
The AX5425Y-3 supports MESH networking, multi-point wired backhaul, MESH networking without DHCP service, and intelligent routing in case of link failures. After MESH networking, AP supports centralized management via AC.
Suitable for enterprise wiring-free wireless networking, wiring-free monitoring in communities, etc.
Supports terminal intelligent identification, can identify iOS, Android and other intelligent mobile terminals and PC. The host name and IP address of the terminal can be identified in the network of the bypass AC, which is convenient for network management and maintenance.
The AX5425Y-3 supports security isolation of business and management VLAN, business and guest VLAN isolation, improving the security level of business data.
AP-based MAC address black and white list control, custom wireless enable time, flexible control of Internet access, to further improve network security.
The AX5425Y-3 supports multiple management methods: micro-AC (that is, AP management AP), local AC, private cloud AC, cloud AC.
The local AC supports gateway, serial, and bypass networking modes.
The bypass AC supports Layer 3/VLAN and supports AP management modes such as DHCP Option43.
A variety of AP management modes can meet the needs of small and medium-sized enterprises, school billing, smart cities and other wireless networking needs.
Support dual IP address management, fixed IP (6.6.6.6) and custom IP.
When there is a network failure, you can log in to the fixed IP address at any time to check the AP status and diagnose network failures.
Anti-escape 1: when wirelessly connecting to an AP, the current AP can be accessed through a fixed IP address. Anti-escape 2: when wired connecting to a certain AP, the current AP can be accessed through a fixed IP address.
The anti-escape function allows maintenance personnel to accurately log in to an AP to configure and view network problems, reducing errors and improving work efficiency.
When the network device is installed, debugged, or failed, it can be configured or viewed through the serial port.
The uncertainty of the AP installation location (roof, pole) makes the wired serial port costly and limited, while the wireless serial port allows network management personnel to connect to the wireless AP wirelessly anytime and anywhere through mobile phones, tablets, etc. to quickly locate and solve problems.
When the network fails, the AP will automatically release the alarm rescue SSID signal, and the network administrator can find the problem in time and log in to the AP management page by connecting the rescue signal.
After logging in to the AP, you can use the network diagnostic function to print the following fault information of the current network:
Connection status of the ports
Does it get an IP address?
Are there any conflicts with IP addresses?
Is VLAN OK?
Etc.
Through the status information, network managers can quickly locate problems and improve work efficiency.
Integrated fat and thin AP, plug and play, installation and replacement is simple.
Both AC and AP support remote management, which facilitates remote debugging and maintenance of network managers and reduces operation and maintenance costs.
◼ Product Specification
Hardware | |||||
Network port speed | 10/100/1000/2500Mbps LAN*1（PoE 48V） 10/100/1000Mbps LAN*1 | ||||
Wireless Rate（max） | 2.4GHz：574Mbps 5.1GHz：2402Mbps 5.8GHz：2402Mbps | ||||
Frequency | 2.4G：2400～2484Mhz 5G-1：5150~5320Mhz 5G-2：5500~5825Mhz | ||||
2.4GHz Wireless Power
| 802.11b | 11M | 26±2dBm | 1M | 26±2dBm |
802.11g | 54M | 23±2dBm | 6M | 25±2dBm | |
802.11n HT20 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
802.11n HT40 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
802.11ax HE20 | MCS11 | 20±2dBm | MCS0 | 24±2dBm | |
802.11ax HE40 | MCS11 | 20±2dBm | MCS0 | 24±2dBm | |
5.1GHz Wireless Power | 802.11a | 54M | 22±2dBm | 6M | 25±2dBm |
802.11n HT20 | MCS7 | 21±2dBm | MCS0 | 23±2dBm | |
802.11n HT40 | MCS7 | 21±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT20 | MCS9 | 21±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT40 | MCS9 | 20±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT80 | MCS9 | 20±2dBm | MCS0 | 23±2dBm | |
802.11ax HE20 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
802.11ax HE40 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
802.11ax HE80 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
802.11ax HE160 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
5.8GHz Wireless Power
| 802.11a | 54M | 22±2dBm | 6M | 25±2dBm |
802.11n HT20 | MCS7 | 21±2dBm | MCS0 | 23±2dBm | |
802.11n HT40 | MCS7 | 21±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT20 | MCS9 | 21±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT40 | MCS9 | 20±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT80 | MCS9 | 20±2dBm | MCS0 | 23±2dBm | |
802.11ax HE20 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
802.11ax HE40 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
802.11ax HE80 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
802.11ax HE160 | MCS11 | 20±2dBm | MCS0 | 22±2dBm | |
2.4GHz Reception sensitivity
| 802.11b | 11M | -87dBm | 1M | -94dBm |
802.11g | 54M | -75dBm | 6M | -88dBm | |
802.11n HT20 | MCS7 | -72dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -70dBm | MCS0 | -88dBm | |
802.11ax HE20 | MCS11 | -63dBm | MCS0 | -88dBm | |
802.11ax HE40 | MCS11 | -61dBm | MCS0 | -88dBm | |
5.1GHz Reception sensitivity
| 802.11a | 54M | -75dBm | 6M | -90dBm |
802.11n HT20 | MCS7 | -73dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -63dBm | MCS0 | -88dBm | |
802.11ac VHT20 | MCS8 | -67dBm | MCS0 | -88dBm | |
802.11ac VHT40 | MCS9 | -64dBm | MCS0 | -88dBm | |
802.11ac VHT80 | MCS9 | -60dBm | MCS0 | -88dBm | |
802.11ax HE20 | MCS11 | -61dBm | MCS0 | -88dBm | |
802.11ax HE40 | MCS11 | -58dBm | MCS0 | -88dBm | |
802.11ax HE80 | MCS11 | -55dBm | MCS0 | -84dBm | |
802.11ax HE160 | MCS11 | -51dBm | MCS0 | -82dBm | |
5.8GHz Reception sensitivity
| 802.11a | 54M | -75dBm | 6M | -90dBm |
802.11n HT20 | MCS7 | -73dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -63dBm | MCS0 | -88dBm | |
802.11ac VHT20 | MCS8 | -67dBm | MCS0 | -88dBm | |
802.11ac VHT40 | MCS9 | -64dBm | MCS0 | -88dBm | |
802.11ac VHT80 | MCS9 | -60dBm | MCS0 | -88dBm | |
802.11ax HE20 | MCS11 | -61dBm | MCS0 | -88dBm | |
802.11ax HE40 | MCS11 | -58dBm | MCS0 | -88dBm | |
802.11ax HE80 | MCS11 | -55dBm | MCS0 | -84dBm | |
802.11ax HE160 | MCS11 | -51dBm | MCS0 | -82dBm | |
2.4GHz EVM | 802.11b:≤-10 dB ；802.11g: ≤-25 dB ；802.11n:≤-28 dB；802.11ax:≤-35 dB | ||||
5GHz EVM | 802.11a:≤-25 dB ；802.11n: ≤-28 dB ；802.11ac:≤-32 dB；802.11ax:≤-35 dB | ||||
Frequency offset (ppm) | ±20ppm | ||||
antenna gain | 4dBi*6 | ||||
Working temperature | -20～55℃ | ||||
Storage temperature | -40～70℃ | ||||
Working relative humidity | 5%～95%（non-condensing） | ||||
Power scheme | PoE 48V IEEE802.3at DC 12V-3A | ||||
Power consumption | ≤26W | ||||
Installation method | ceiling, wall, mounting, | ||||

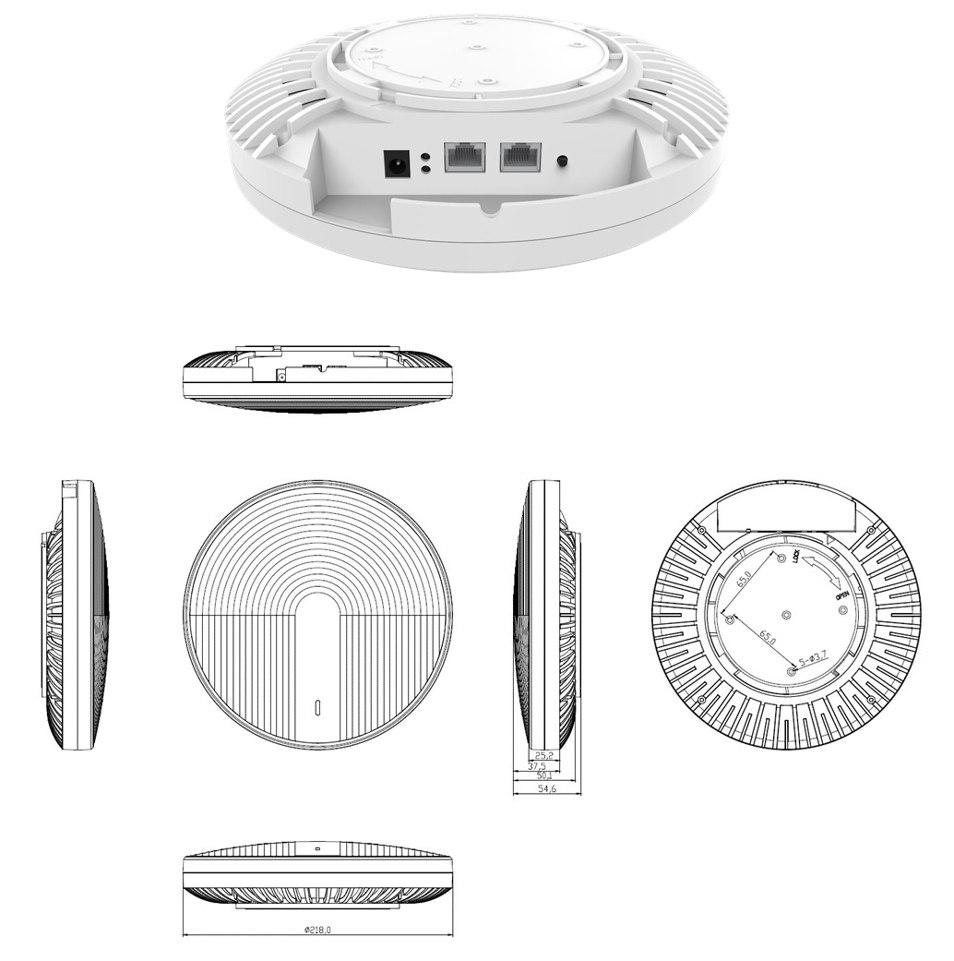

Dimensions | 218*54.6mm | ||||
Weight | 0.96kg | ||||
Software Features | ||
Max connections | 320 | |
Connection limit | support | |
Bandwidth setting | support | |
Power settings | support | |
Channel Settings | support | |
Channel optimization | support，the device can detect internal and external channel interference and automatically select the best channel. | |
RF Disable | support，2.4G or 5G can be disabled respectively | |
SSID Hide | support | |
Channel monitoring | Support, digital real-time display channel interference | |
Virtual AP | Support, can be divided into max 12 SSID | |
Chinese SSID | support | |
load balancing | support | |
Fast roaming | support，802.11 k/v/r fast roaming | |
Spectrum navigation | Support, 5G priority | |
SSID VLAN | Supported, each SSID is divided into different VLANs | |
Business isolation | Support, management address and SSID address to divide different VLAN | |
Terminal Isolation | Support, user isolation | |
Black and white lists | Support, reject mobile terminal (MAC) connection at AP side, more secure | |
Time-sharing Internet | Support, the wireless connection startup time can be set according to the working day and time interval, such as Monday to Friday 8:30 to 17:30 to enable wireless network. | |
AP alarm rescue wireless serial port | Support, when the wireless AP detects some abnormalities and cannot recover, it will release an SSID with a rescue signal beginning with "SOS" and ending with six digits after the AP "MAC" address; Wireless network maintenance personnel can log in to AP by connecting rescue SSID and diagnose the cause of the failure with one key. | |
AP Tracking | support | |
AP Online Upgrade | support | |
Cloud AC Management | support | |
Local AC | Support, support cross layer-3, VLAN management (DHCP Option43, static routing). | |
Micro AC | Support, in the absence of AC, each AP can manage other gathering AP in the network, that is, AP is also AC. | |
Offline AC | Support, when communication between AC and AP is interrupted, surfing the Internet is not affected and users do not perceive | |
Group Management | Support, AP group management | |
IP Batch Modify | Support, the management IP of AP can be modified in batch in AC | |
Batch password modification | Support, AP login password can be modified in batch in AC | |
Timed restart | support | |
Real-time load | Support, real-time display of 1 minute, 5 minutes, 15 minutes load | |
Real-time traffic | Support, real-time display of wired and wireless traffic | |
MESH | Support, multi-point wired backhaul, multi-master and multi-sub mesh networking, EMSH networking without DCHP service, and MESH networking. MESH networking supports service VLAN transparent transmission. | |
Network Diagnostics | Support, diagnose equipment physical connection status, LAN port address, networking status, VLAN, AC connection status | |
Remote management | Support, micro cloud fixed address for remote management | |
Configuration export | Support, configuration file can be exported and imported | |
Dual IP address management | Fixed IP: 6.6.6.6 Automatically Obtained IP / Manually Configured IP: ***.***.***.*** Password: admin | |
◼ Packing List
Item | Quantity | Note |
Main machine | 1 | |
Power Adapter | 1 | optional |
Screw | 4 |
