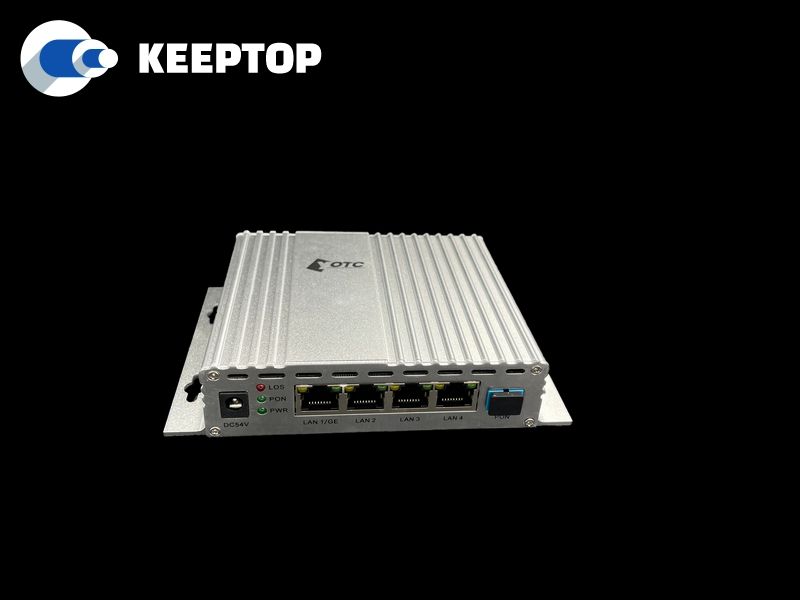

KEEPTOP GPON ONT ONU 1GE 3FE POE M2-0400HS

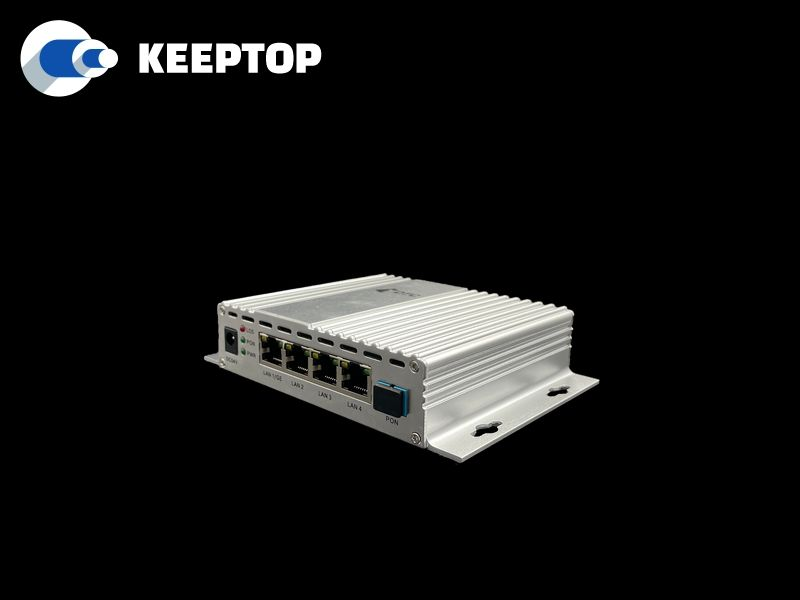

The M2-0400HS is a pure data PoE ONT with one 10/100/1000 Mb and three 10/100 Mb adaptive PoE ports. It supports IEEE802.3af 15.4W Power over Ethernet standards, which can automatically identify powered devices that meet the IEEE802.3at/af standard. If the connected device is non-POE powered, it supports automatic power stop. It supports connecting and powering network devices such as webcams, IP phones and wireless APs.

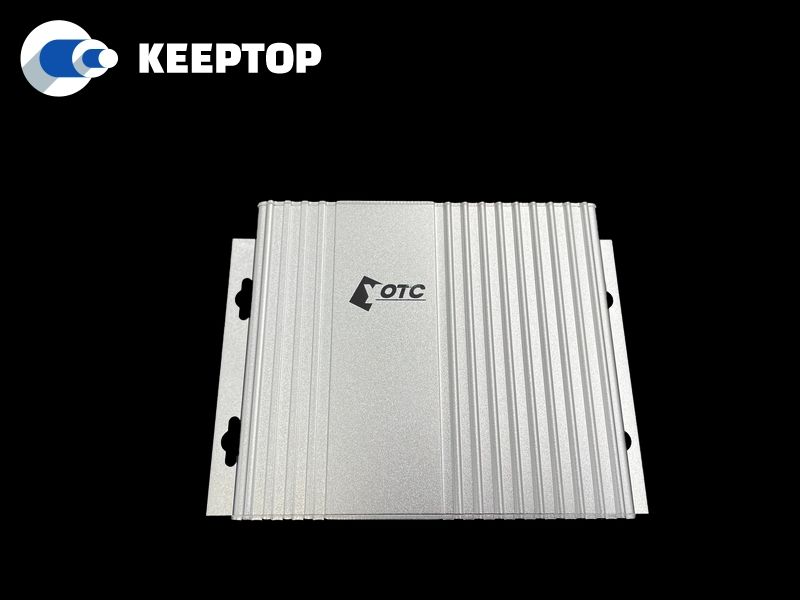

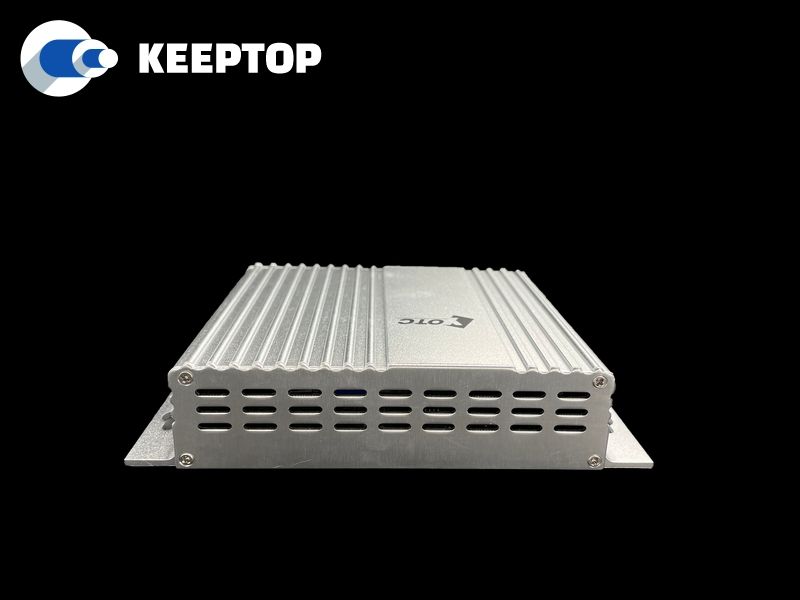

With the OLT unified network management system, remote fault diagnosis and positioning can be realized, reducing maintenance workload. The design of the iron shell is suitable for various application environments such as FTTB/FTTH.

Model:
M2-0400HS
Brand:
KEEPTOP

Availability:

Quantity:



Inquire Add to Basket

Product Description

Hardware Specification

Parameter Name	Hardware Parameter
PON	GPON/EPON Auto-adaptive, SC single-mode/single-fiber GPON: Upstream 1.244Gbps, Downstream 2.488Gbps EPON: Upstream 1.25Gbps, Downstream 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Sensitivity	<-28dBm (CLASS B+), Tx 0.5dBm~+5dBm, Rx -27dBm
Overload	>-8dBm (CLASS B+)
Optical Type	SC/PC
Interface Type	110/100/1000 Mb and 310/100 Mb adaptive PoE ports, RJ45 connector
POE	4 ports, IEEE802.3af 15.4W, automatic identification of powered devices automatically powered / powered off
Dimension	147 mm mm(D)100mm(W)41mm(H)

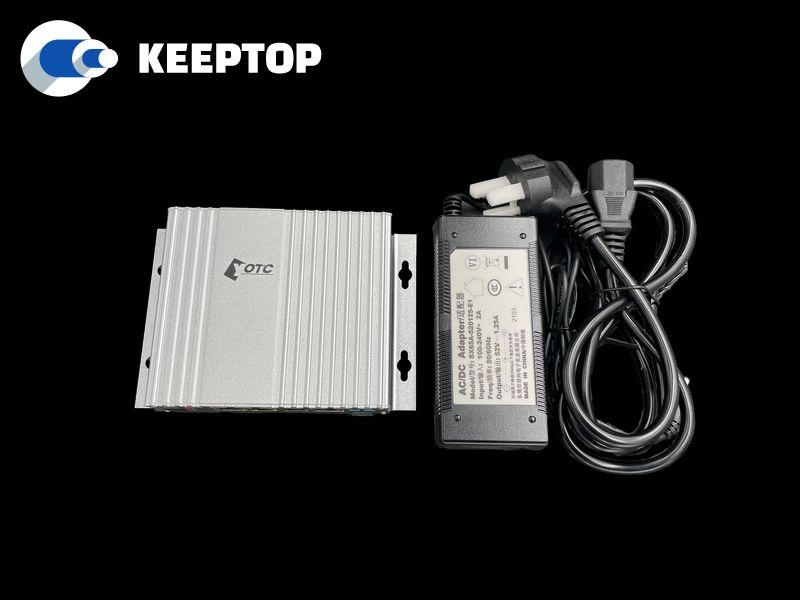

Power Supply	External power adapter, 54V/1.17A
Power Consumption	8W (PoE port without power receiving device) 63W (powered device with PoE port with maximum power consumption)
Working Environment	Temperature	-30ºC to +70º C (default)
	Humidity	5% to 95% (no condensing)

Software Feature

Parameter Name	Software Parameter
PON feature	Compliant with ITU-T G.984 standard (GPON) and IEEE802.3-2008ah standard(EPON), FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report 802.1p mapper for upstream QoS scheduling based on SP or WRR between GEM port and T-CONT Downstream multicast GEM port and broadcast GEM port
Ethernet Feature	Support Auto-speed and MDI/MDIX auto detection Internal L2 switch Advanced data processing function, such as VLAN label processing, flow classification and packet filtering. Standard IEEE 802.3af、IEEE 802.3at
OAM feature	Standard OMCI (the embedded operations channel) compliant with ITU-T G.984 Alarm reporting, performance monitoring Remote software upgrade through OMCI
