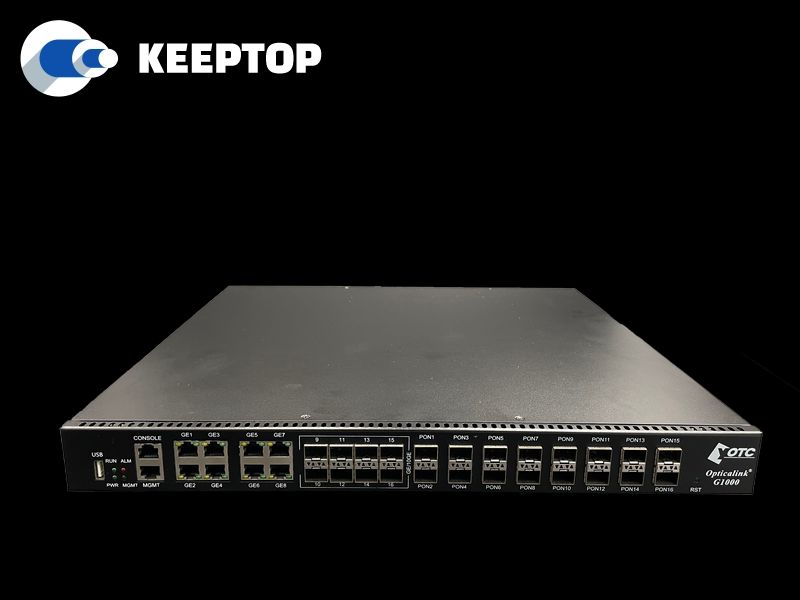

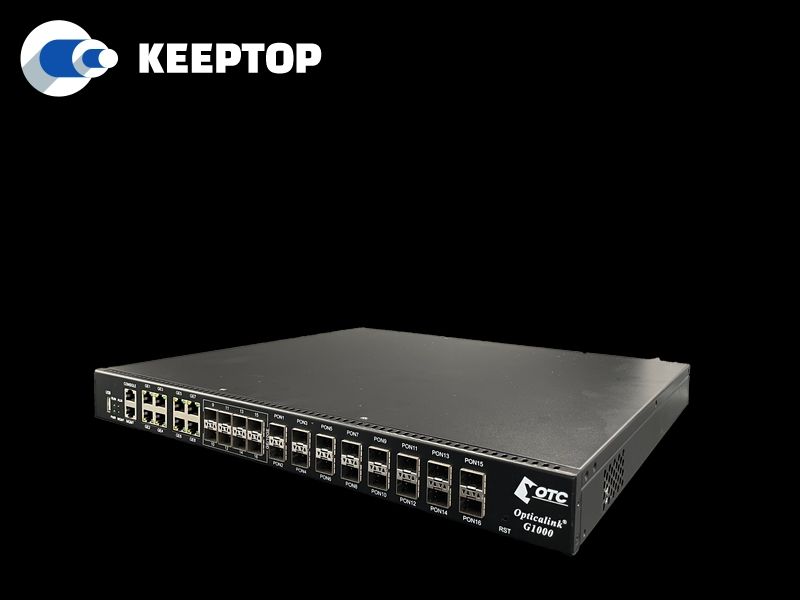

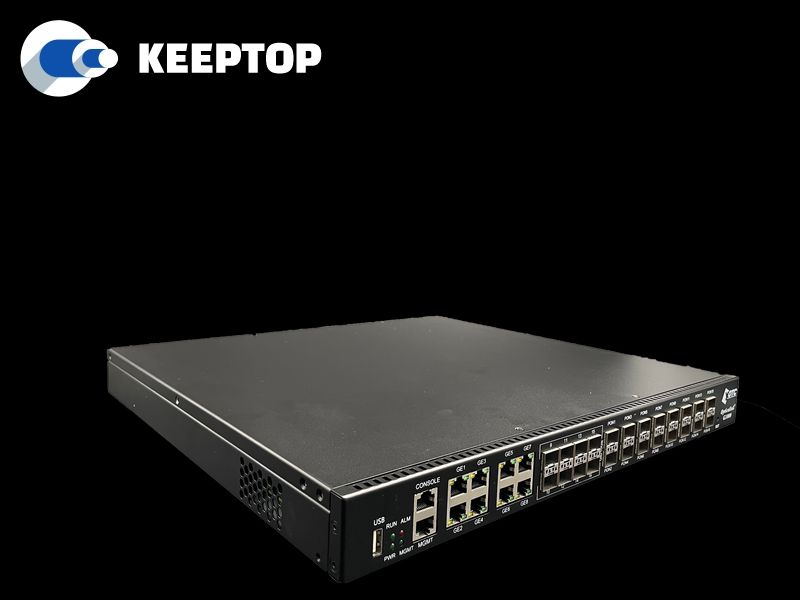

G1000
KEEPTOP
| Quantity: | |
|---|---|
Item | G1022 16 PON | G1012 8 PON | ||
Chassis | Rack | 1U 19” standard box | ||
1000M Uplink Port | Pon Port | 16 | 8 | |
Copper 10/100/1000M auto-negotiation | 8 | 4 | ||
SFP+ SFP+ is 1G/10GE (independent) | 8 | 4 | ||
GPON Port | QTY | 16 | 8 | |
Physical Interface | SFP Slot | |||
Connector Type | Class B+/C+ | |||
Max splitting ratio | 1:128 | |||
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | |||
PON Port Specification | Transmission Distance | 20KM | ||
GPON port speed | Upstream 1.244G, Downstream 2.488G | |||
Wavelength | TX 1490nm, RX 1310nm | |||
Connector | SC/PC | |||
Fiber Type | 9/125μm SMF | |||
TX Power | +1 ~ +5dBm | |||
Rx Sensitivity | -28dBm | |||
Saturation Optical Power | -8dBm | |||
Management Mode | SNMP, Telnet, CLI | |||
Management Function | Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc.; GPON management function: DBA, ONU authorization, ACL, QOS, etc.; Online ONU configuration and management; User management; Alarm management. | |||
Layer2 Switch | 16K Mac address Support 4096 VLANs; Support port VLAN and protocol VLAN; Support VLAN tag/Un-tag, VLAN transparent transmission; Support VLAN translation and QinQ; Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W; Support static LACP; QOS based on port, VID, TOS and MAC address; Access control list; IEEE802.x flow control; Port stability statistic and monitoring. | |||
Multicast | IGMP snooping 256 IP Multicast Groups; | |||
Layer 3 Route | Arp proxy Static route 1024 hardware Host Routes; 512 hardware Subnet Routes; | |||
GPON Function | TCont dba; GEMPort traffic In compliant with ITUT984.x standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation, RSTP, etc.; Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support power-off alarm function, easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support RSTP, IGMP Proxy. | |||
Dimension(L*W*H) | 440mm (W) x 44mm (H) x 402(D) | |||
Weight | 6.1kg | |||

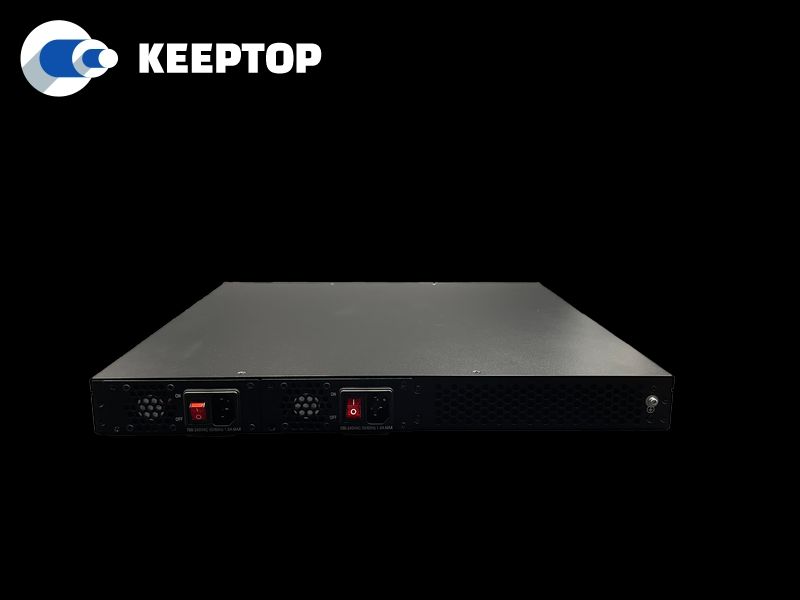

Power Supply | 220VAC (Double Power Module Hot Backup) | AC:100-240VAC 50-60Hz 1.8A MAX | ||
Power Consumption | 100W | |||
Operating Environment | Working Temperature | -10 ~ +55℃ | ||
Storage Temperature | -30 ~ +75℃ | |||
Relative Humidity | 10 ~ 90%(non-conditioning) | |||
