G654E-110
KEEPTOP
| Quantity: | |
|---|---|
Description:
*Ultra-low attenuation of ≤ 0.16 dB/km and optimally enlarged effective area of 110 µm2
*For terrestrial long-haul 100 Gbit/s, 200 Gbit/s, 400 Gbit/s and beyond digital coherent transmission systems
*Applicable for high-density terrestrial cables
Parameters:
General | |||||
Effective Area | Typical effective area at 1550 nm | 110 µm2 | |||
Attenuation | Typical attenuation at 1550 nm | 0.156 dB/km | |||
Core Glass | Pure Silica | ||||
Optical Characteristics | |||||
Attenuation | Attenuation at 1550 nm | ≤ 0.16 dB/km | |||
Attenuation at 1625 nm | ≤ 0.19 dB/km | ||||
Point discontinuity at 1550 nm | ≤0.05 dB | ||||
Mode Field Diameter (MFD) | MFD at 1550nm | 11.7 ± 0.7 µm | |||
Chromatic Dispersion | at 1550 nm | 17–23 ps/nm/km | |||
slope at 1550 nm | 0.050-0.070 ps/nm2 /km | ||||
Cable Cutoff Wavelength (λcc) | λcc | ≤1520 nm | |||
Polarization Mode Dispersion (PMD) | Individual fiber PMD*1) | ≤ 0.1 ps/r-km | |||
Fiber PMD link design value*2) | ≤0.06 ps/r-km | ||||
Geometrical Characteristics | |||||
Glass Geometry | Core-cladding concentricity error | ≤ 0.8 µm | |||
Cladding diameter | 125.0 ± 1.0 µm | ||||
Cladding non-circularity | ≤1.0 % | ||||
Fiber curl radius | |||||
Coating Geometry | Coating diameter (Natural) | 245 ± 10 µm | |||
Coating diameter (Colored) | 250 ± 15 µm | ||||
Coating-cladding concentricity error | ≤12 µm | ||||
Mechanical Characteristics | |||||
Proof Test | Proof stress level | 1.2% (0.86GPa) | |||
Macrobending Loss | Bending radius | Number of turns | Wavelength | Induced Attenuation | |
30 mm | 100 | 1550 nm | ≤ 0.1 dB | ||
30 mm | 100 | 1625 nm | ≤ 0.1 dB | ||
Dynamic Fatigue (Nd) | Nd | 20 | |||
Environmental Tests | |||||
Condition | Induced Attenuation Change at 1550 nm and 1625 nm | ||||
-60 to +85ºC temperature cycling (IEC60793-1-52) | ≤ 0.05 dB/km | ||||
-10 to +85ºC/98%RH temperature humidity cycling | ≤0.05 dB/km | ||||
+23ºC water immersion (IEC60793-1-53) | ≤0.05 dB/km | ||||
+85ºC heat aging (IEC60793-1-51) | ≤0.05 dB/km | ||||
+85ºC/85%RH damp heat (IEC60793-1-50) | ≤ 0.05 dB/km | ||||
Performance Characteristics | |||||
Effective Group Index of Refraction | Effective group index of refraction at 1550 nm | 1.462 | |||

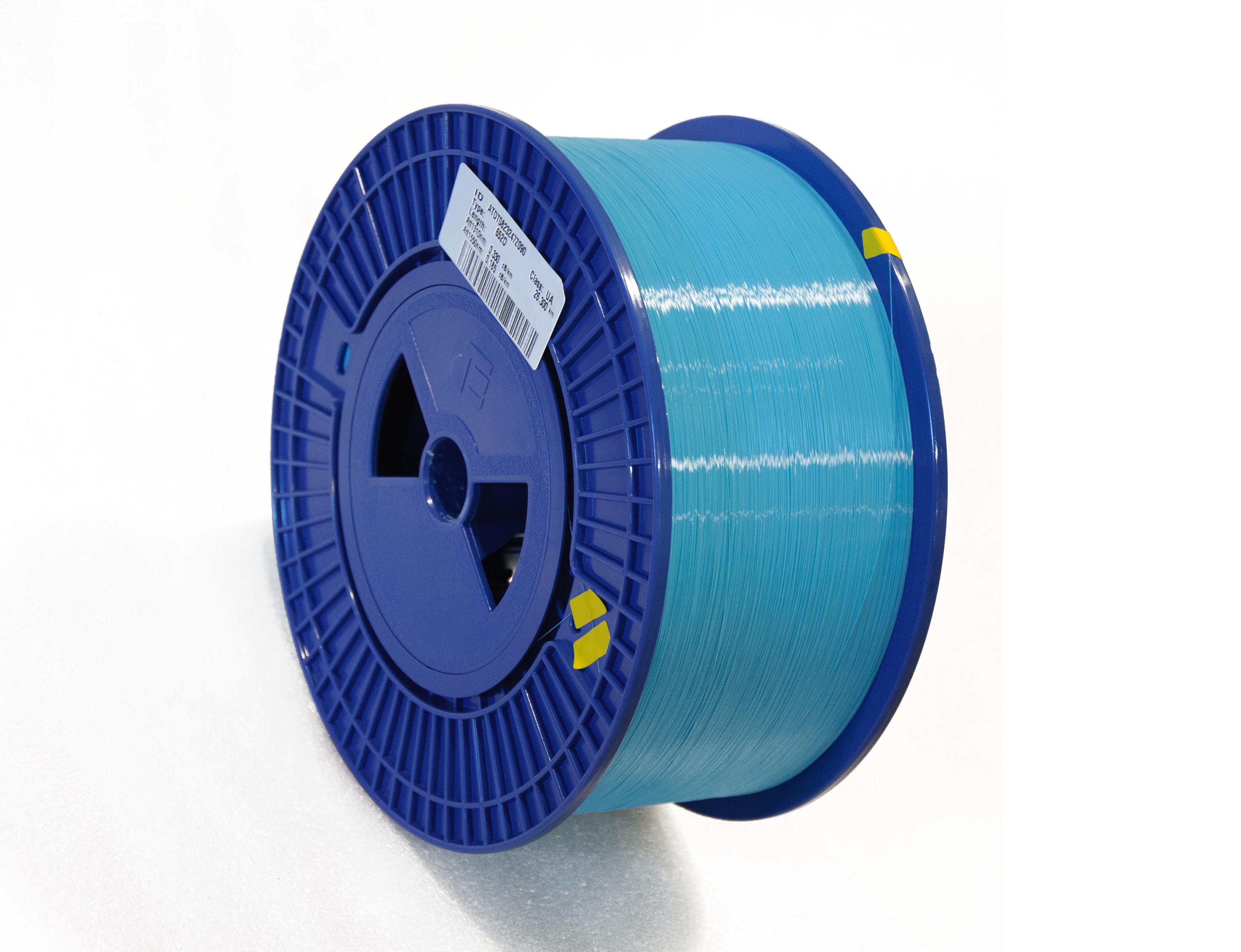

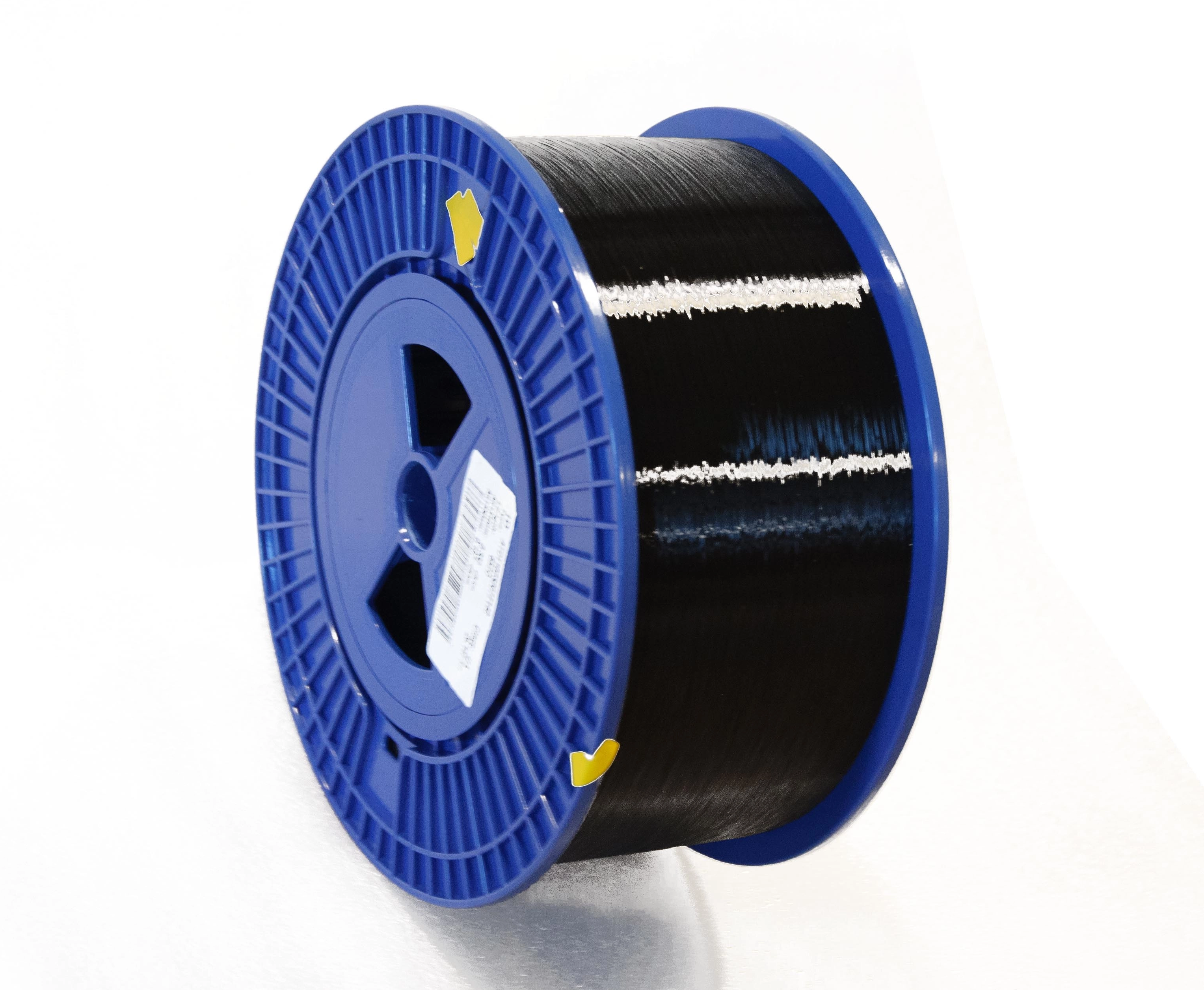

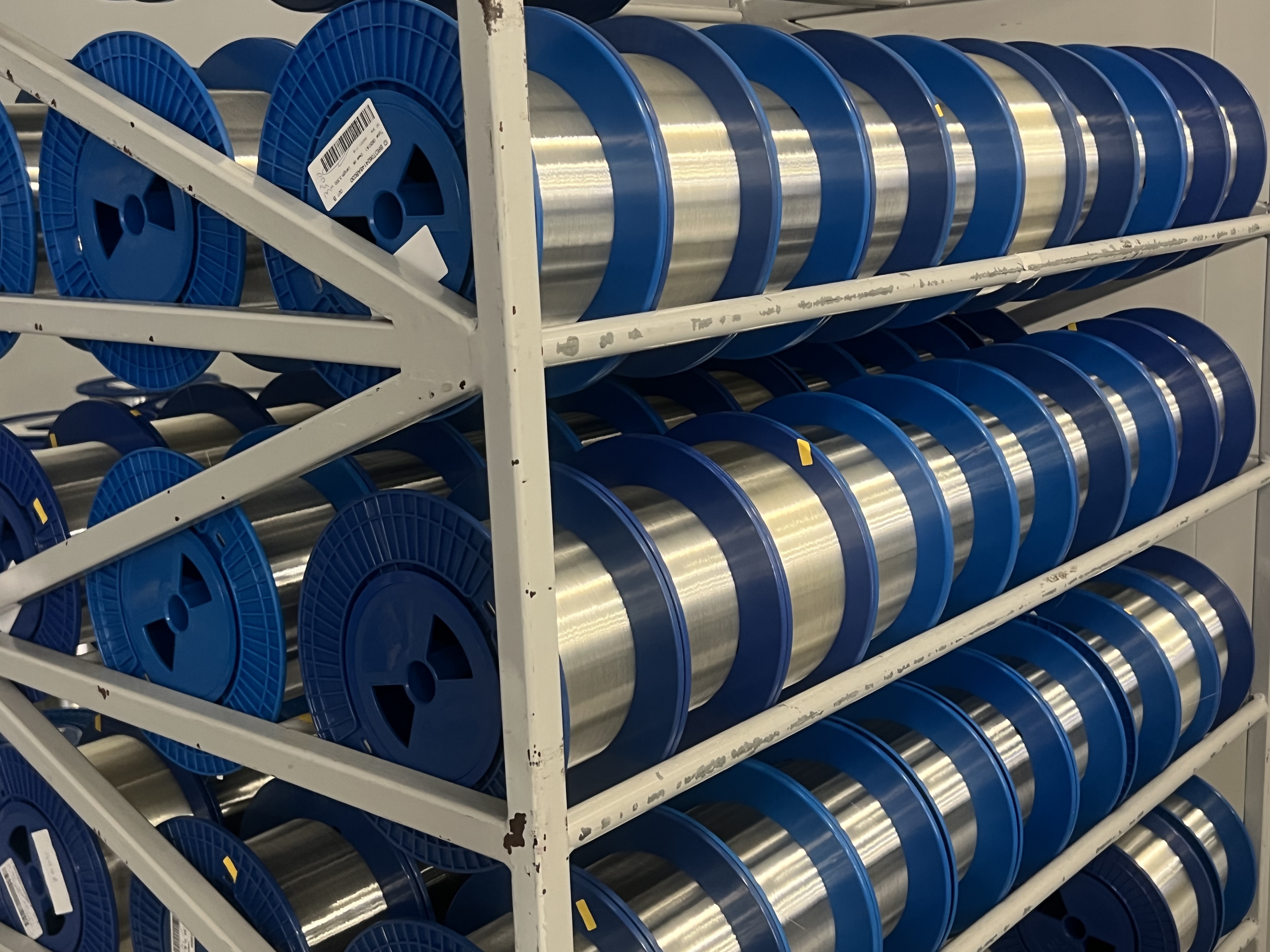

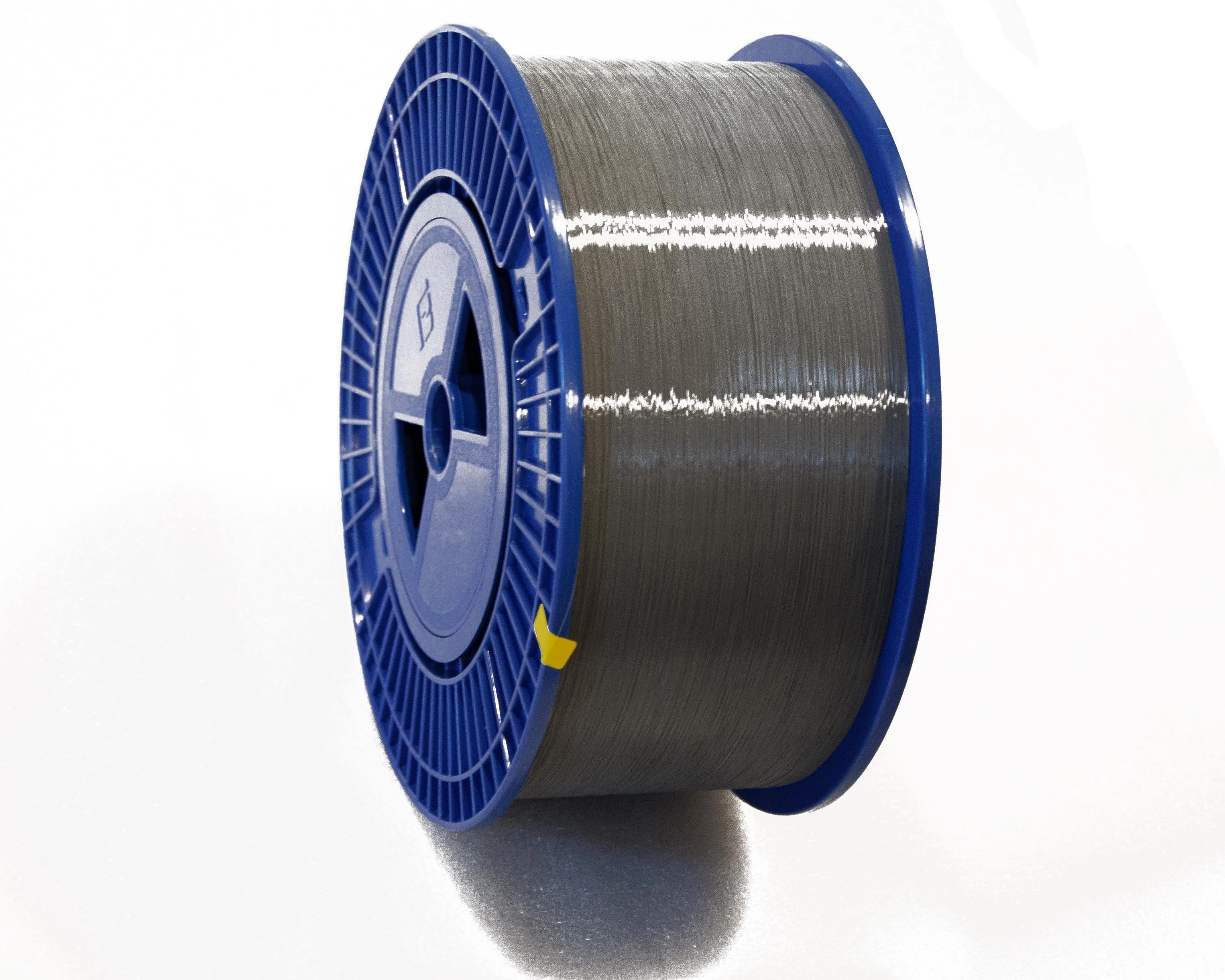

Packing | Plastic spool | Length: 8.8km, 25.2km, 50.4km | |||
