M2-2050

Integrated with powerful interoperability and low cost, GPON M2-2050 ONT provide triple-play services to the subscribers in FTTx application.

Equipped with 2.5G Downstream and 1.25G Upstream GPON interface compliant with ITU-T G.984 standard, M2-2050 ONT support the comprehensive triple-play services, including video and high-speed internet access service. It also provides dual frequency WiFi 5 functions, so that home users can enjoy better wireless broadband coverage.

  • M2-2050

  • KEEPTOP

Availability:
Quantity:
Inquire Add to Basket

M2-2050 (2GE+WiFi5 XPON ONT) is designed to meet the FTTH requirements of fixed network operators. The ONT is based on a high- performance chipset (Realtek) technology solution, supporting IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3 functions. The ONT supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the YOTC OLT. The ONU has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies with IEEE802.3ah, ITU-T G.984, etc.

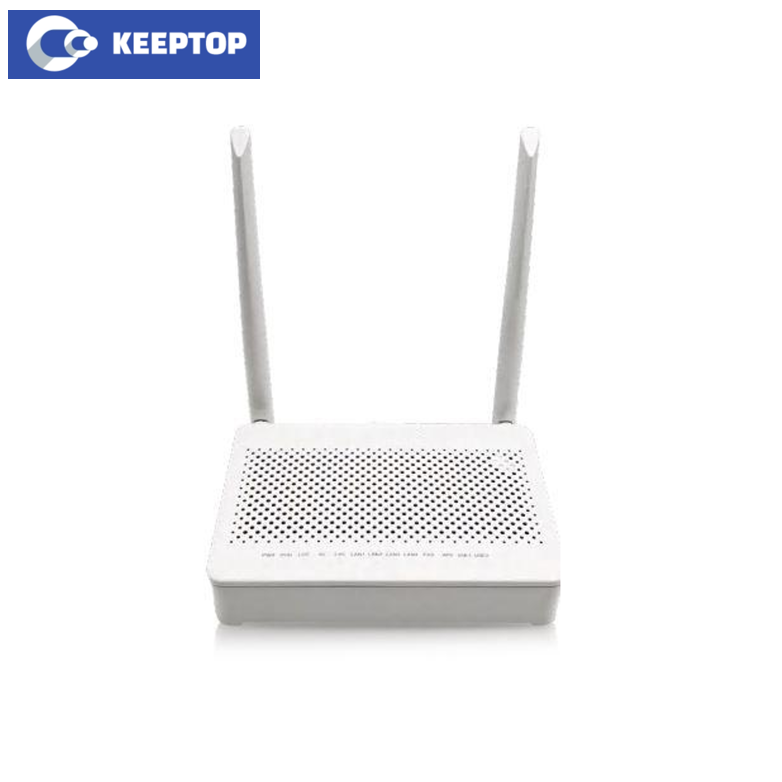

M2-2050 GPON ONU 2GE+WiFi5

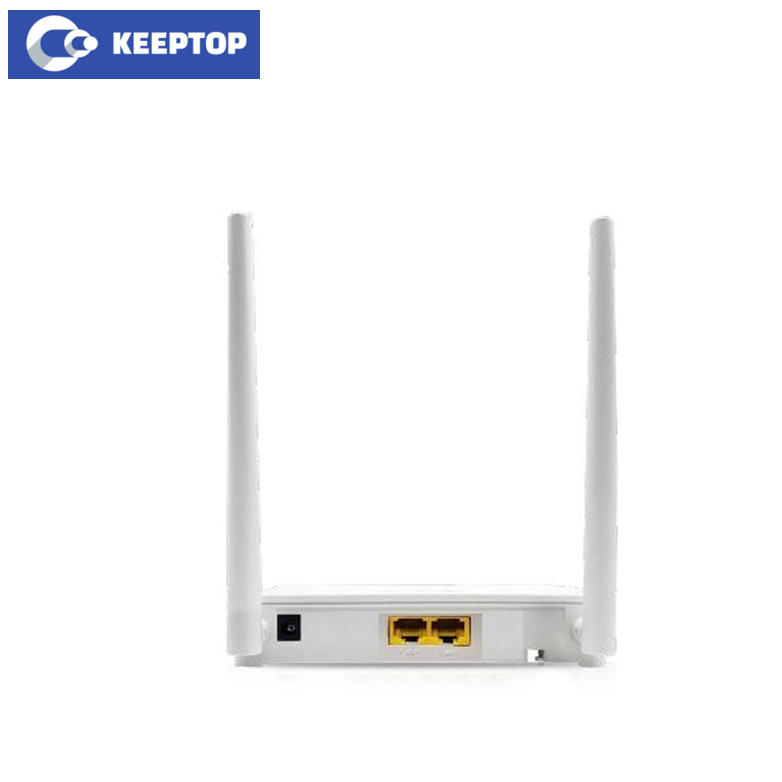

M2-2050 GPON ONU 2GE+WiFi5

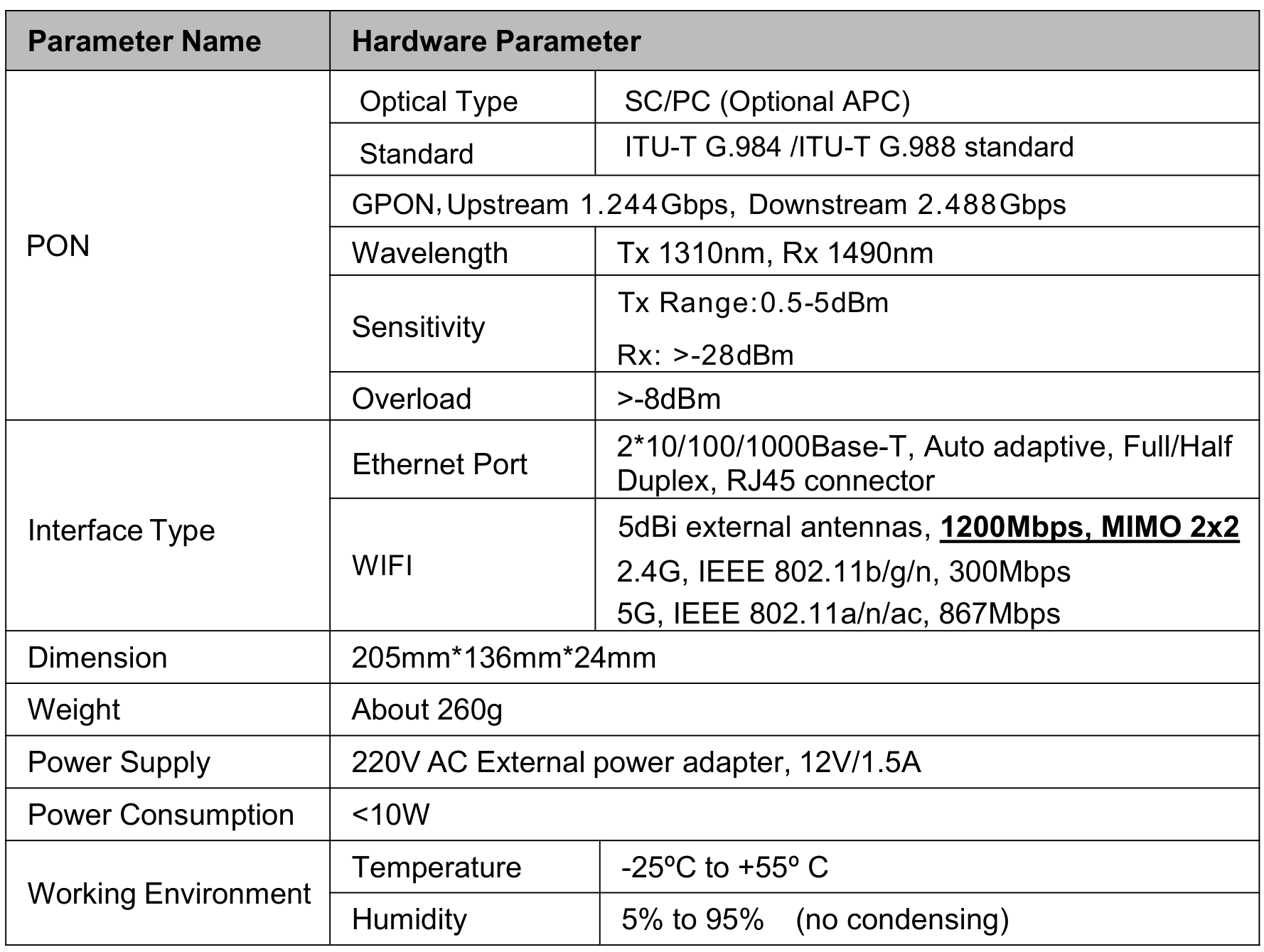

Hardware Specifications

2024-08-08_132302

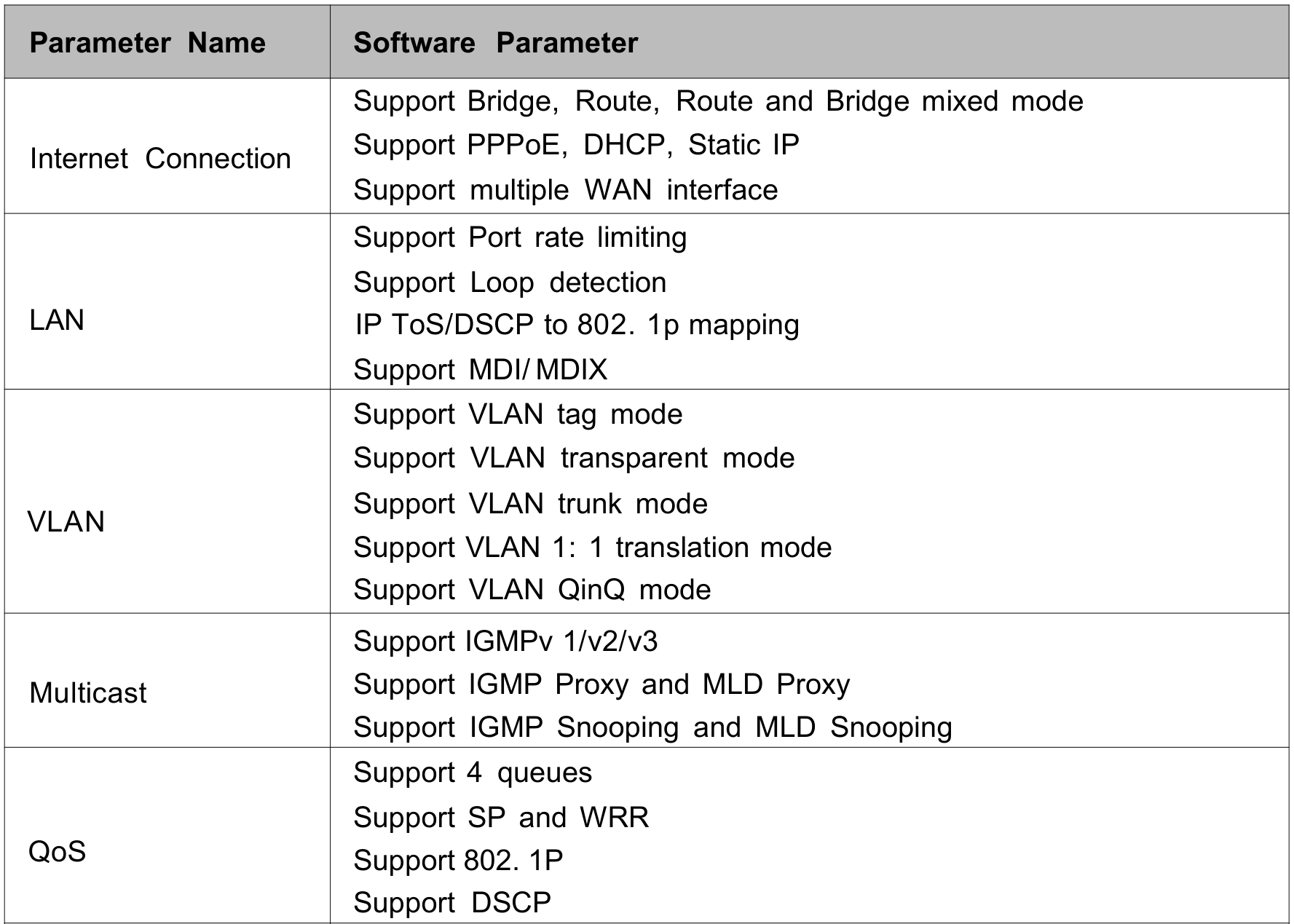

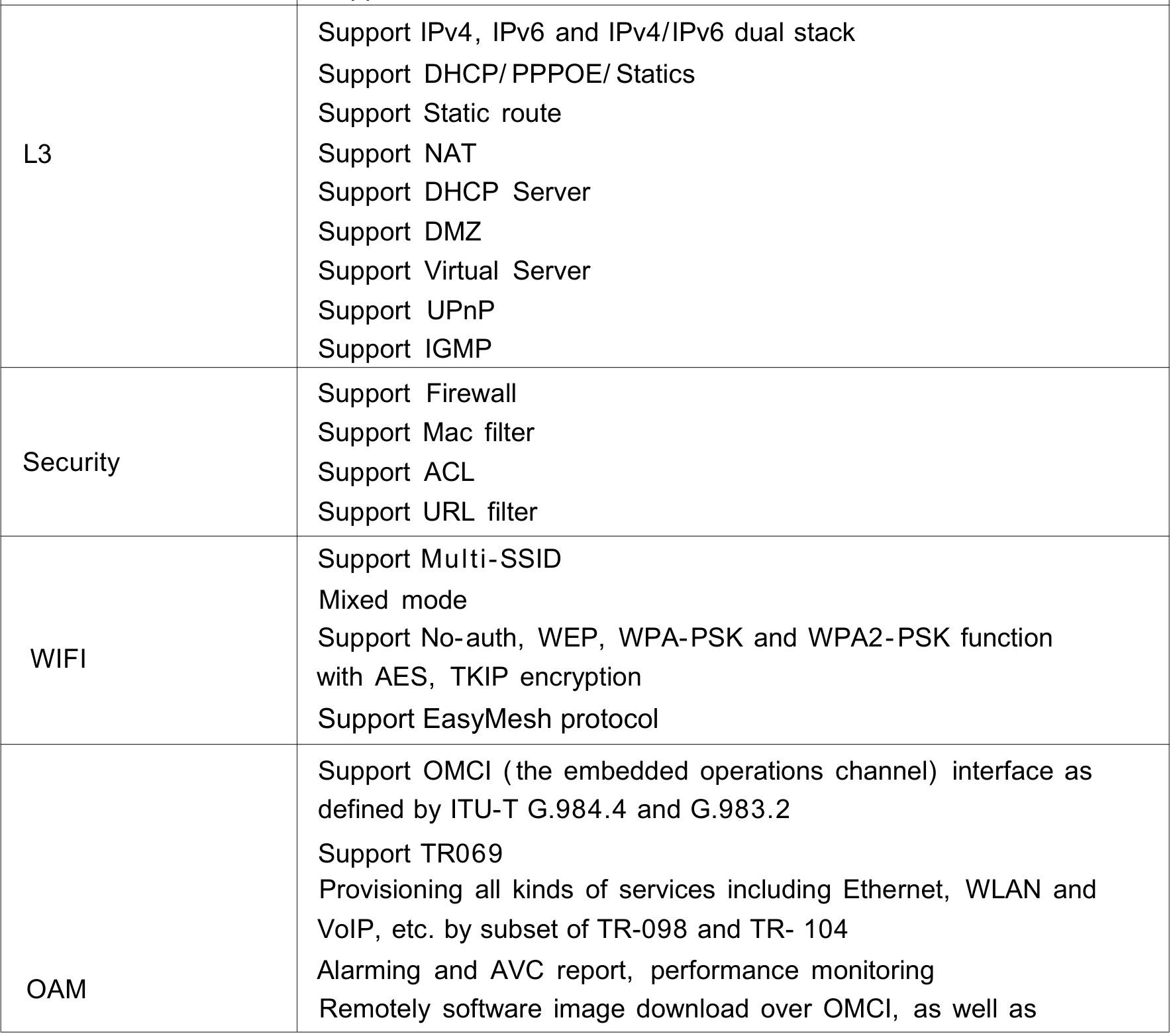

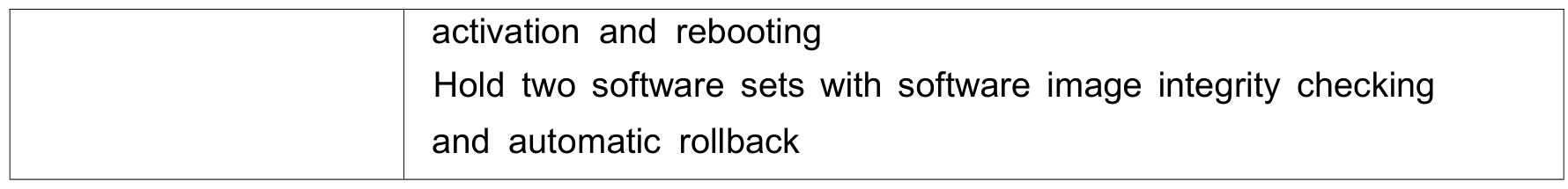

Software Features

2024-08-08_132322

2024-08-08_132335

2024-08-08_132351



Previous:
Next:
GPON ONU ONT 2GE WiFi5 POTS EPON XPON
