KT-MB22
KEEPTOP
| Quantity: | |
|---|---|

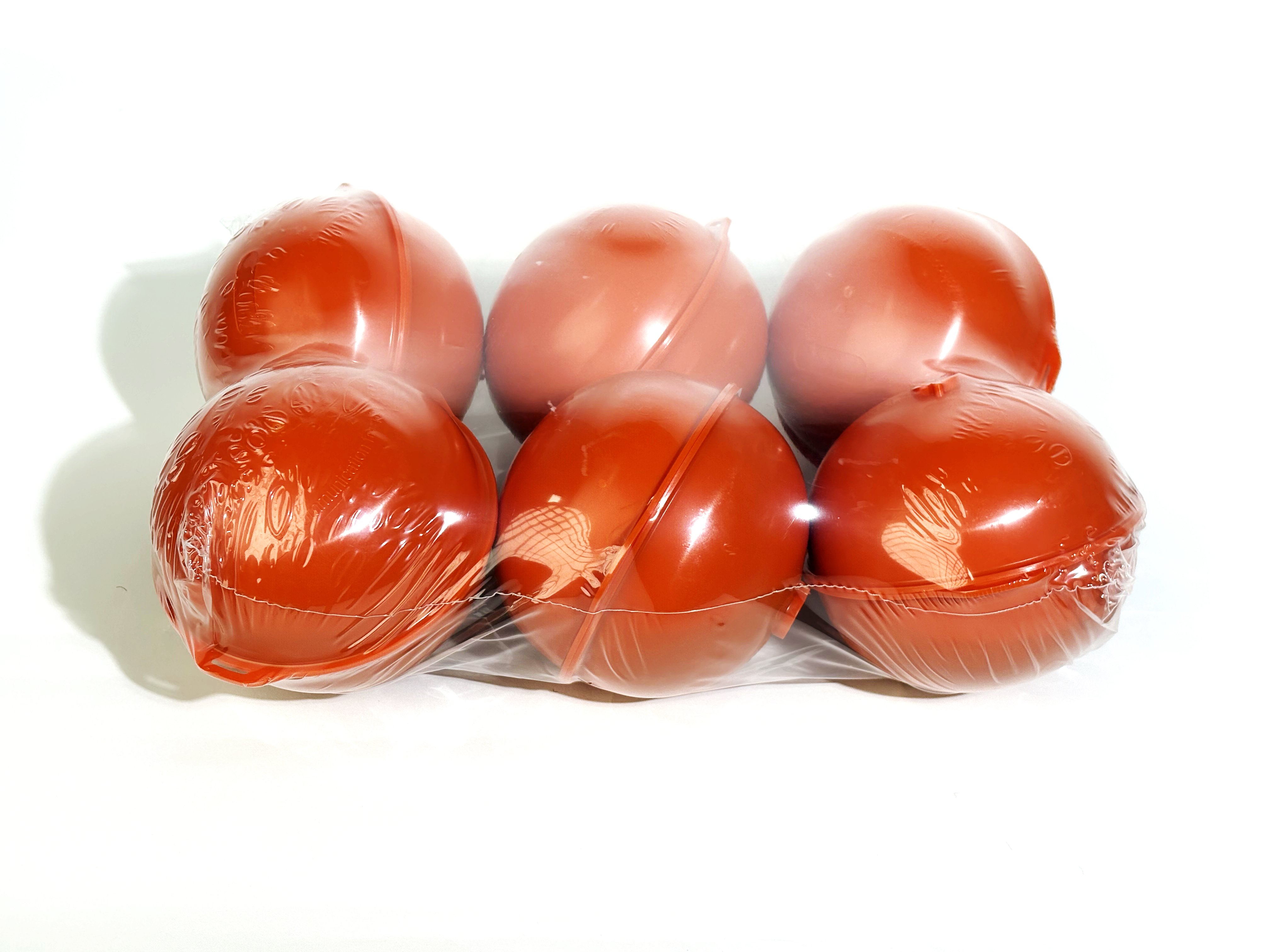

Keeptop Telecommunication Underground fiber optical cable Ball Markers KT-MB22 orange
Description:
The Keeptop Ball Marker makes the job of precisely locating underground facilities easier. Other buried markers can be disturbed by backfill dirt or installed improperly, so they don’t stay positioned correctly.
The Keeptop ball marker’s unique self-leveling design ensures the marker is always in an accurate, horizontal position regardless of how it is placed into the ground. The addition of the Keeptop-iD markers provides additional functionality by enabling facility data to be stored in the marker to ensure positive identification of facilities.
The Keeptop Ball marker is buried over key facilities during construction or maintenance. Later, the marker is easily and accurately located.
The Keeptop Ball markers use a passive technology that doesn't require energy source for it's functionality and it's design for a long lasting life once positioned underground.
Application :
The Markerball MB22 orange is used to mark relevant positions in the ground.
If necessary, the passive electronic oscillating circuit can be located with pinpoint accuracy by means of a locator. Typical positions for the ball marker are, e.g, telecommunication cables, pipe bracings, branches or joints.
Features and Design :
ball-shaped
2 lateral brackets for attachment to marked position
Location ..................................................................................up to distance (depth) of 1,5 m
Colour......................................................................................................................... Orange
Frequency................................................................................................101,4 kHz ± 2,5 kHz
Automatic horizontal alignment of the locating coil
Technical specifications:
Climate area
Use in soil
Temperature range during storage.................................................-40 to +75 °C (-40 to 167 °F)
Temperature range during operation.................................................-15 to +60 °C (5 to 140 °F)
Mechanical values
Dimensions Diameter...............................................................................................ca. 110 mm
Width, brackets included.................................................................................................125 mm Material................................................................................................................................HDPE Weight...........................................................................................................................ca. 0,4 kg
Flammability according to UL94.................................................................self-extinguishing, V-0
