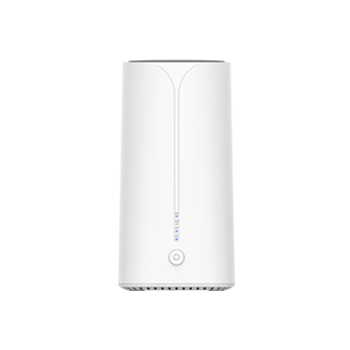

C5620G-3 5G WIFI6 AX3000 CPE

Model

C5620G-3

Chipsets

IPQ5018+SDX62

Wi-Fi

Wi-Fi6 Max.3000 Mbps ；
  2.4GHz: 802.11b/g/n/ax 2T2R MIMO Max. 600Mbps
  5.8GHz: 802.11a/n/ac/ax 2T2R MIMO Max. 2400Mbps

WiFi Access

Support 128 users

Wi-Fi Extension

Support Easy Mesh

5G NR

3GPP Release 16 NSA/SA operation, Sub-6 GHz

5G Network Type

NSA/SA

5G/4G Data Rate

5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs)
  5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to ISPs)
  LTE:  Down 1.0 Gbps；UP 200 Mbps

5G Frequency Bands

5G NR NSA
  n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/   66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  5G NR SA
  n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/   66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  MIMO
  Downlink: 4×4 MIMO on   n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79

4G/3G Frequency Bands

Downlink Cat 19/ Uplink Cat 18
  LTE - FDD
  B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/   71
  LTE -TDD
  B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
  MIMO
  DL: 4x4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/
  B29/B30/B66/B41/B42/B43/B48/B71
  WCDMA
  B1/ 2/ 4/ 5/ 8/ 19

Modulation Mode

5G:
  GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
  WIFI:
  1024 -QAM / OFDMA

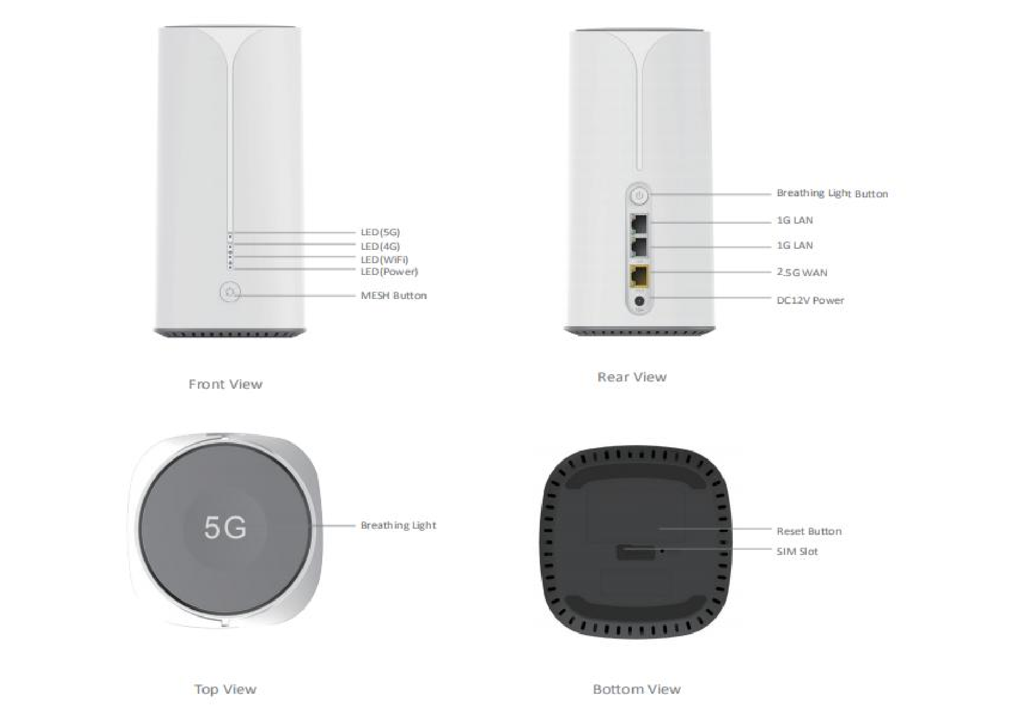

Interface port

2*10/100/1000M LAN
  1*10/100/1000/2500M WAN
  1 SIM card slot (4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card   interface, support 3V SIM card and 1.8V SIM card: internal)

Indicator light

Power, Breathing Light, 4G Signal, 5G Signal, WiFi   Signal

Button and power supply

Reset; Mesh; 12V power supply

VPN

Support L2TP, PP2P

Dimensions

108*108*216mm (L*W*H)

Weight

1.35KG (Includes color box and accessories）

Shell Material

Plastic

Operating Temperature

-20℃ ~ +50℃

Storage Temperature

-40℃ ~ +70℃

Operating Humidity

5% ~ 95% non-condensation

Power Adaptor Input

100~240v, 50/60Hz

System Power Supply

DC12V, 2A

Power Consumption

＜24W

Management

Web; TR069

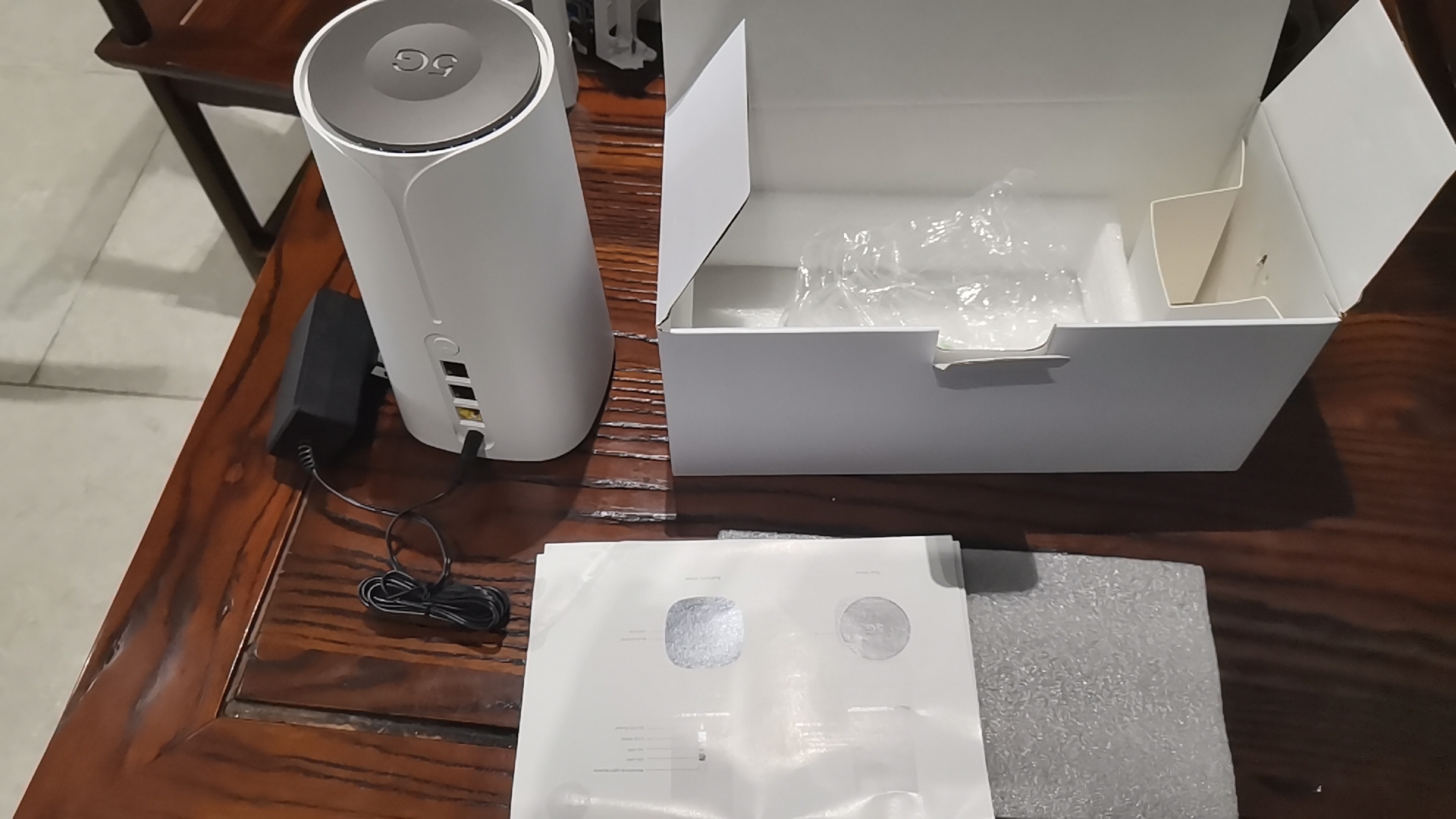

Main machine

1

Power Adapter

1

optional
